SPECIFICATIONS

Brand Name: byyourpower

Certification: CE

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 3542

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motor Components

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

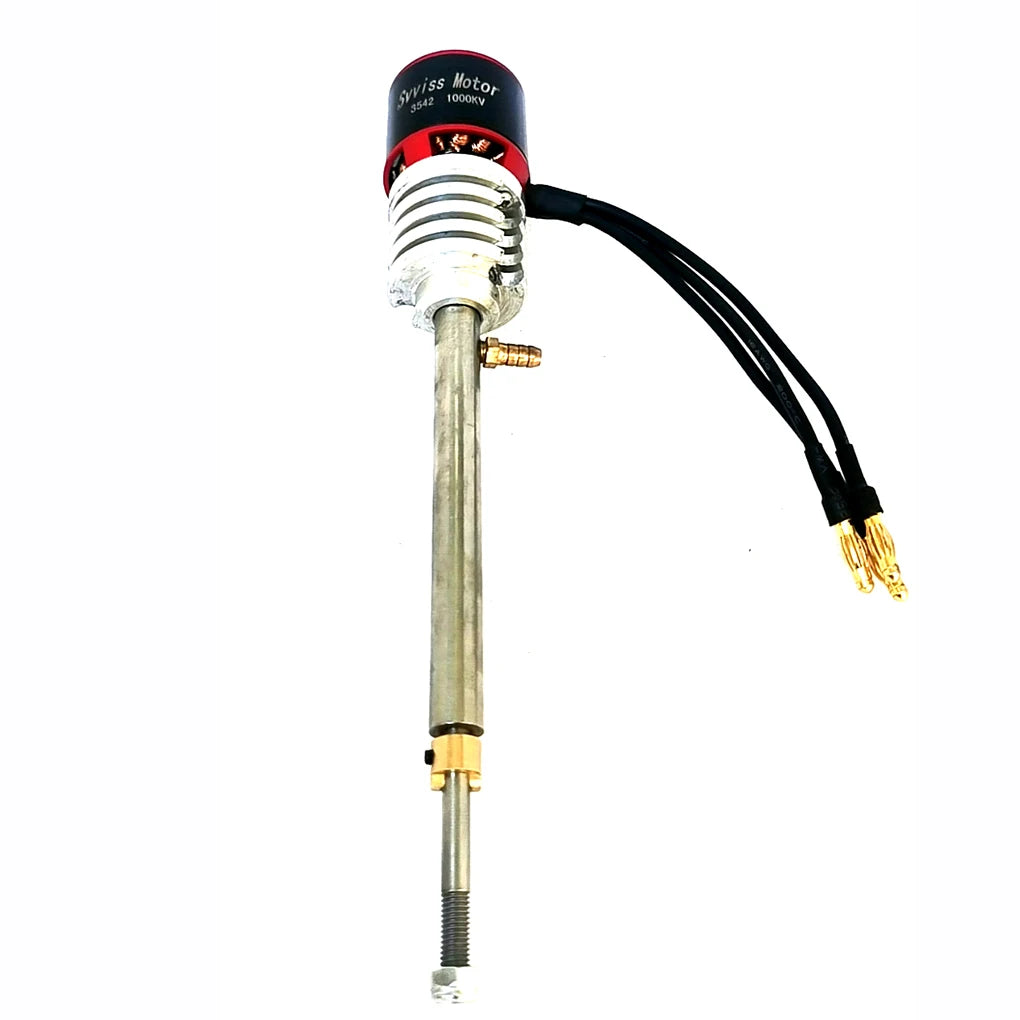

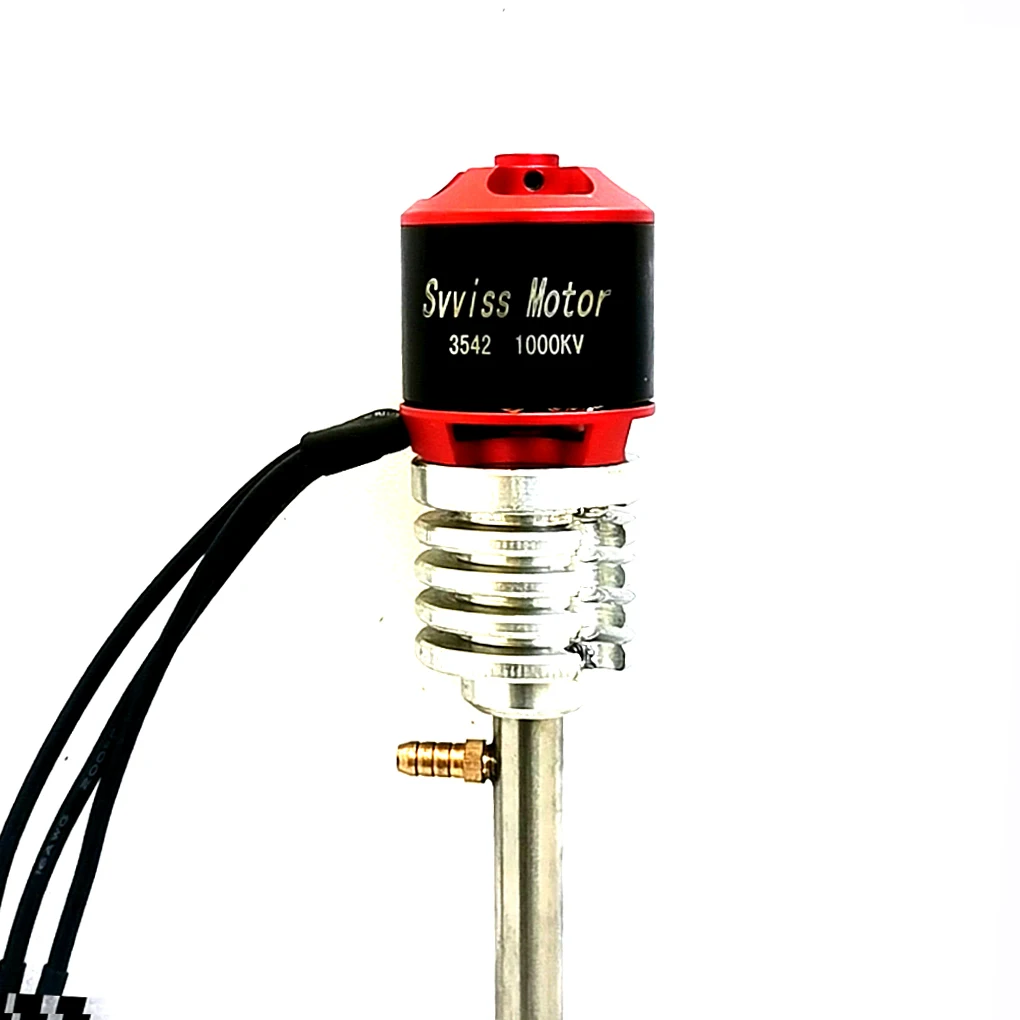

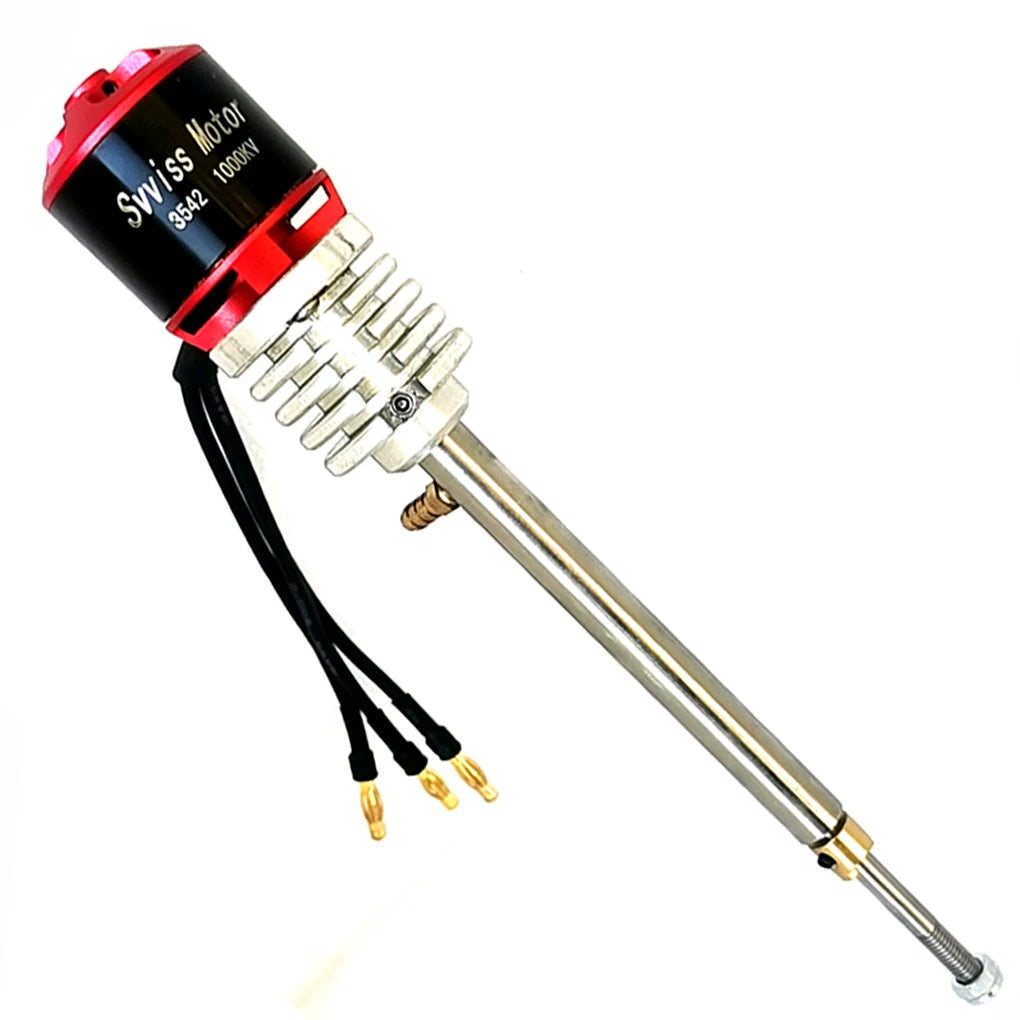

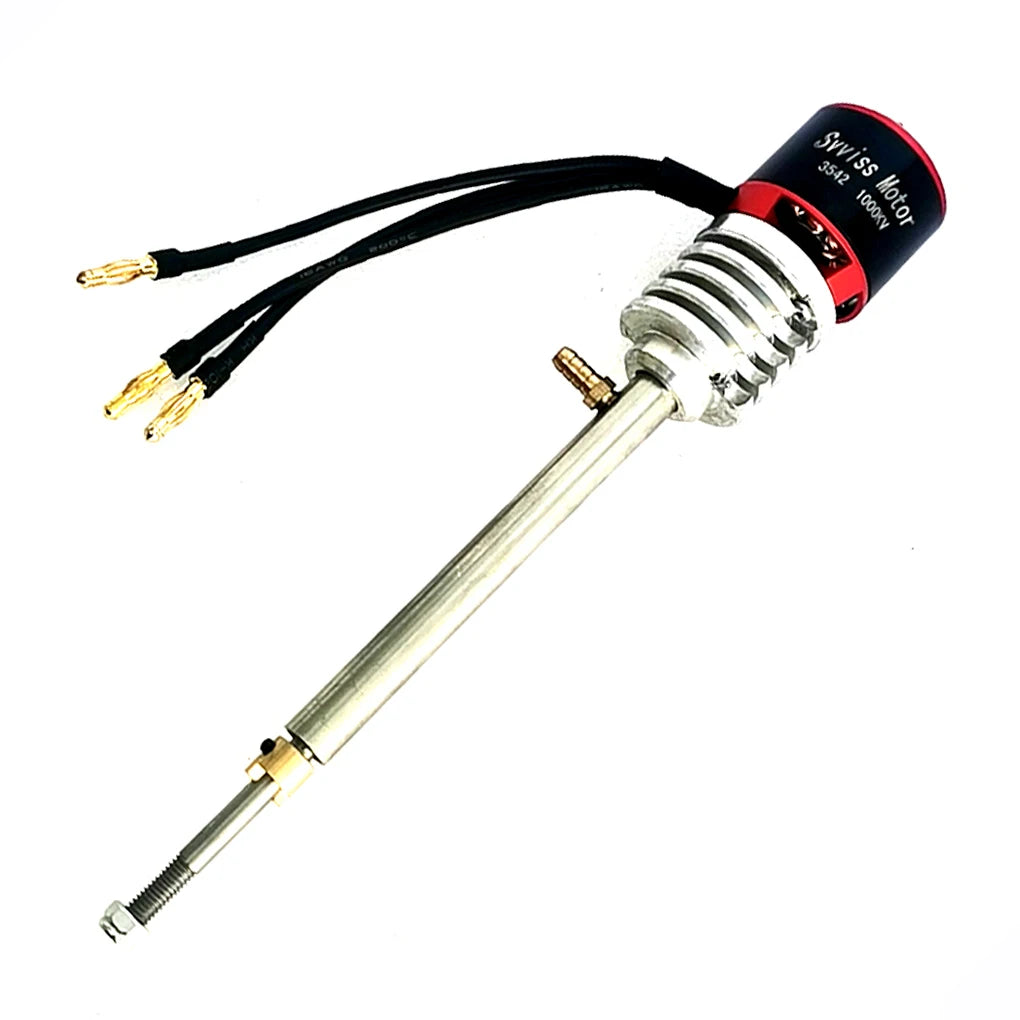

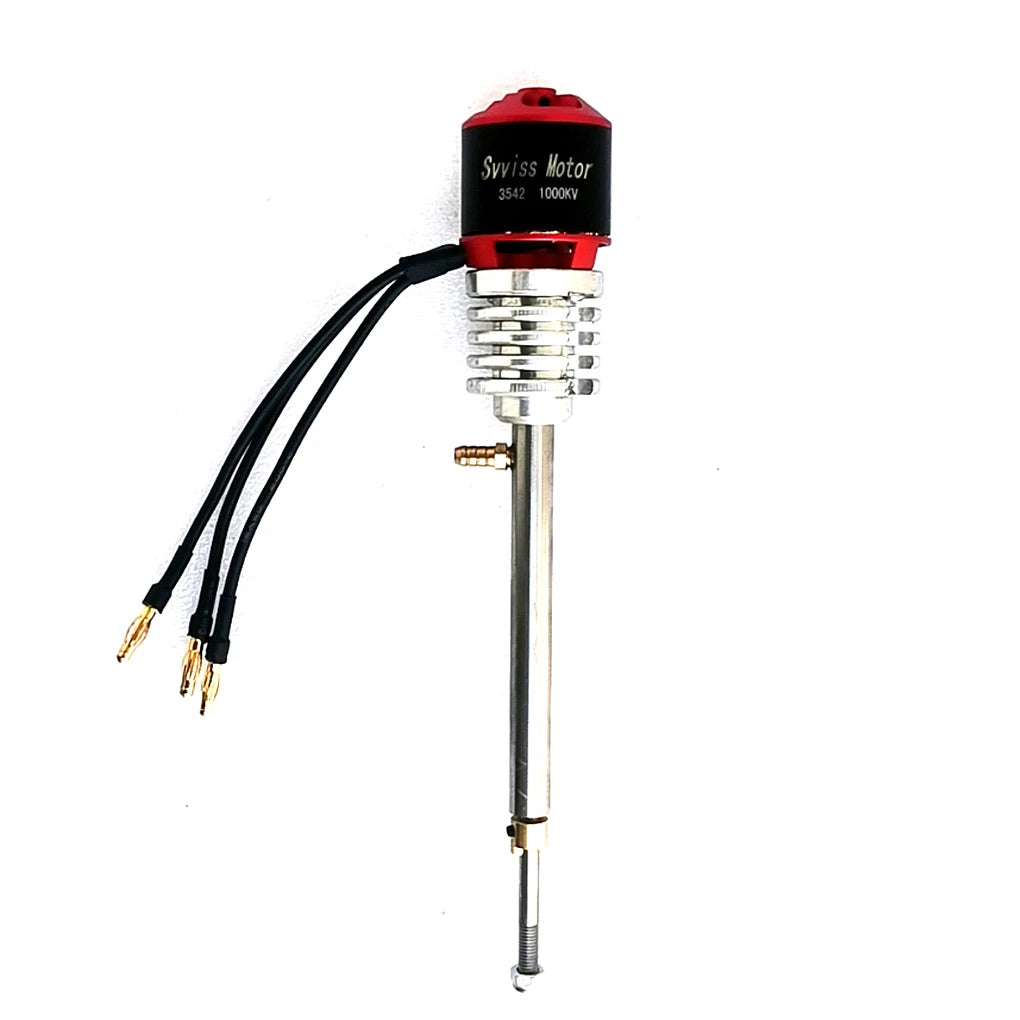

Swiss Quality Motor Brushless Outrunner DC motor Strong power supply 1000KV

Motor tatol weight: 231g

long life Japanese NMB ball bearing

Efficient Japanese Kawasaki stator steel

Rare earth magnets stable up to 180

Oxygen free pure commer wires

CNC machined aluminum frame

Silicone wire leads

Patented Balance techniques

Unique wiring method

Specification:

Model:  LS3542

Weight: 231g

Total length：210mm

The shaft diameter*length:5mm*170mm

The shaft installing sleeve：10mm*22.5mm

KV(rpm/v): 1000

Max Power: 600W

Battery: 3-4 Li-Po

Test Prop: 42mm

Ri(M): 0.031

ESC(A): 60A

Pull (Approx): 900g

Idle Current: 2A

Load Current: 17.8A

Package content:

1x Long axis motor

1x Aluminium Radiator

1x Paddle fork

1x Grease spout

1x shaft sleeve
