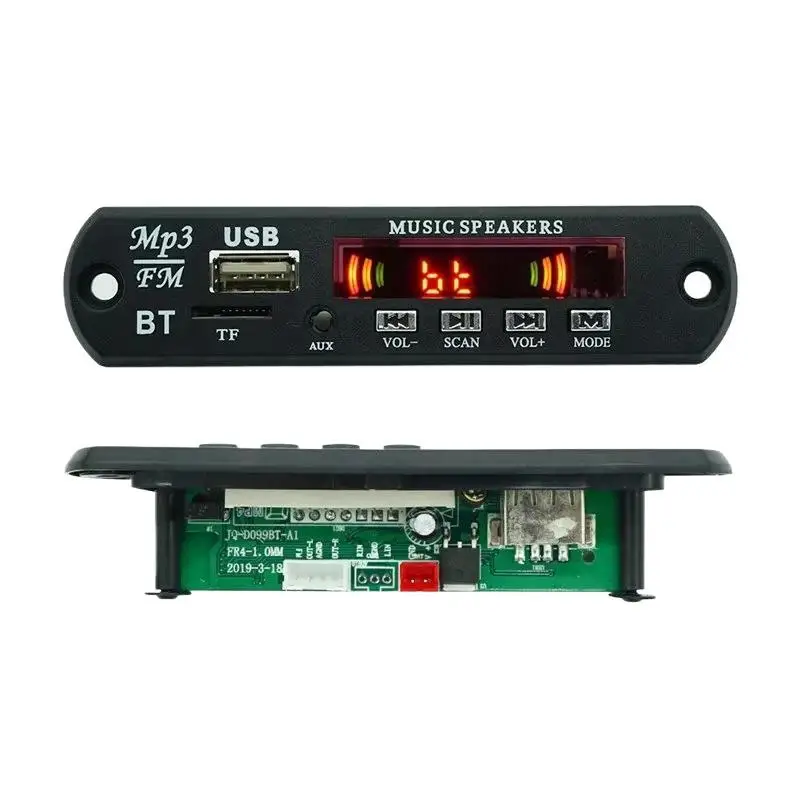

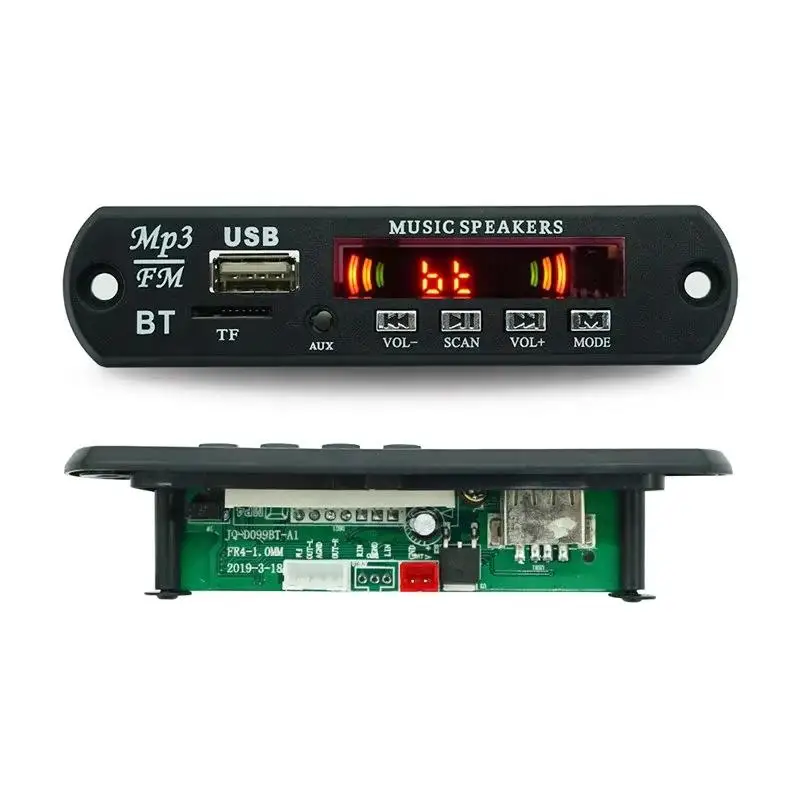

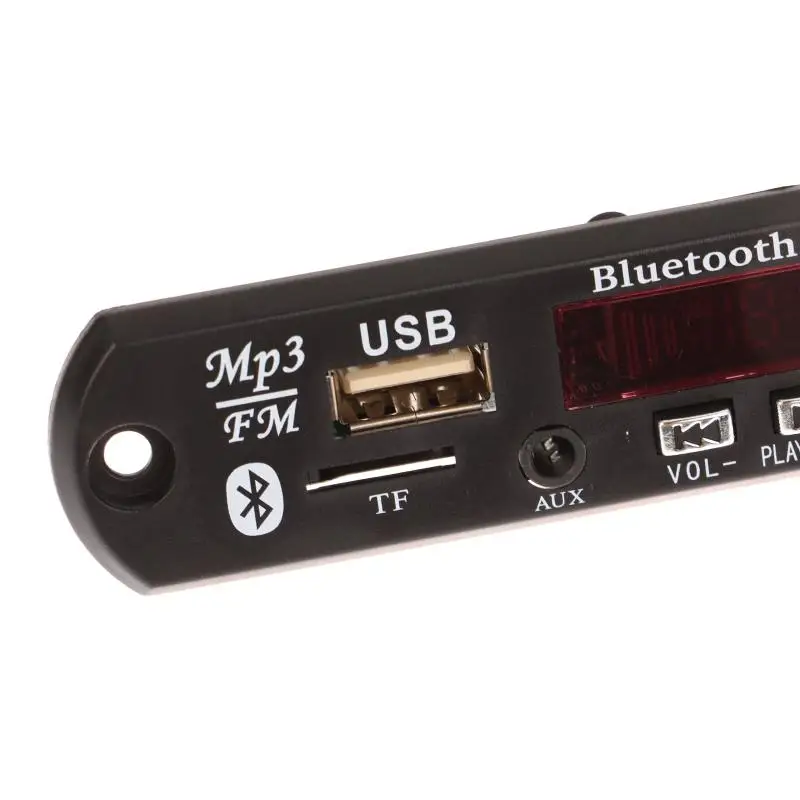

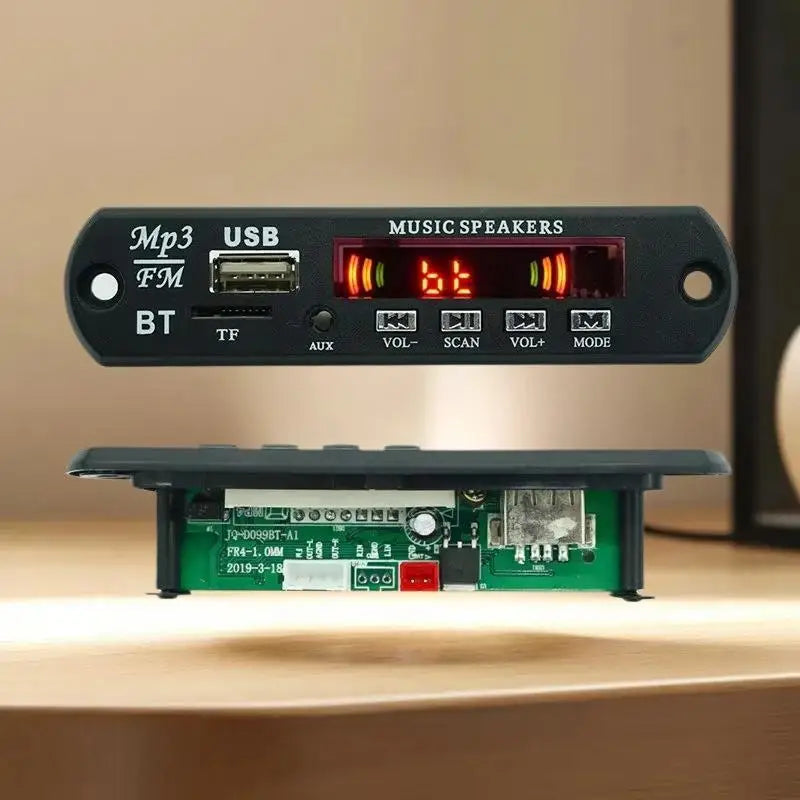

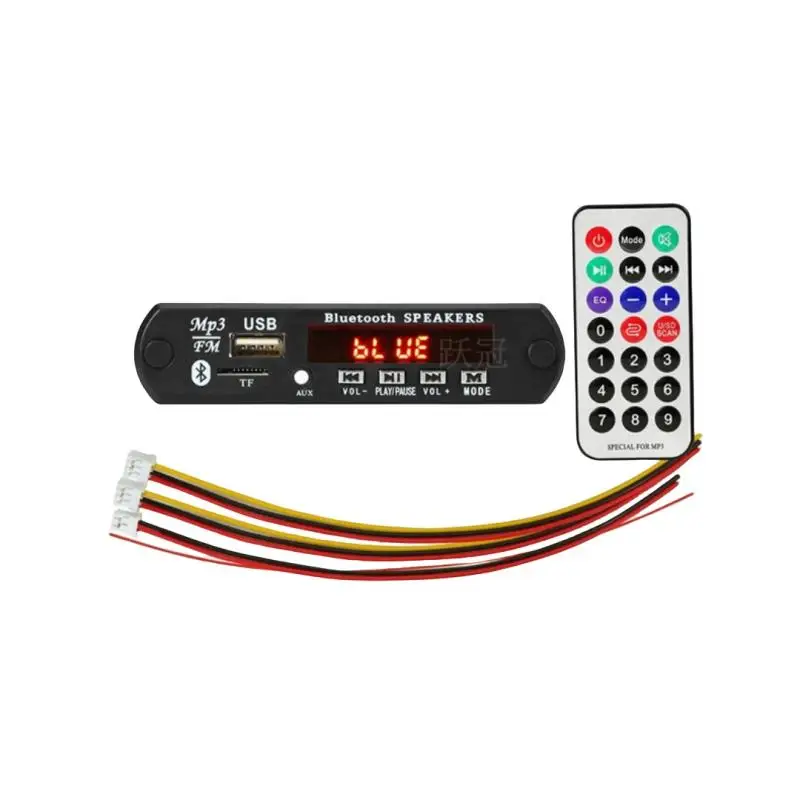

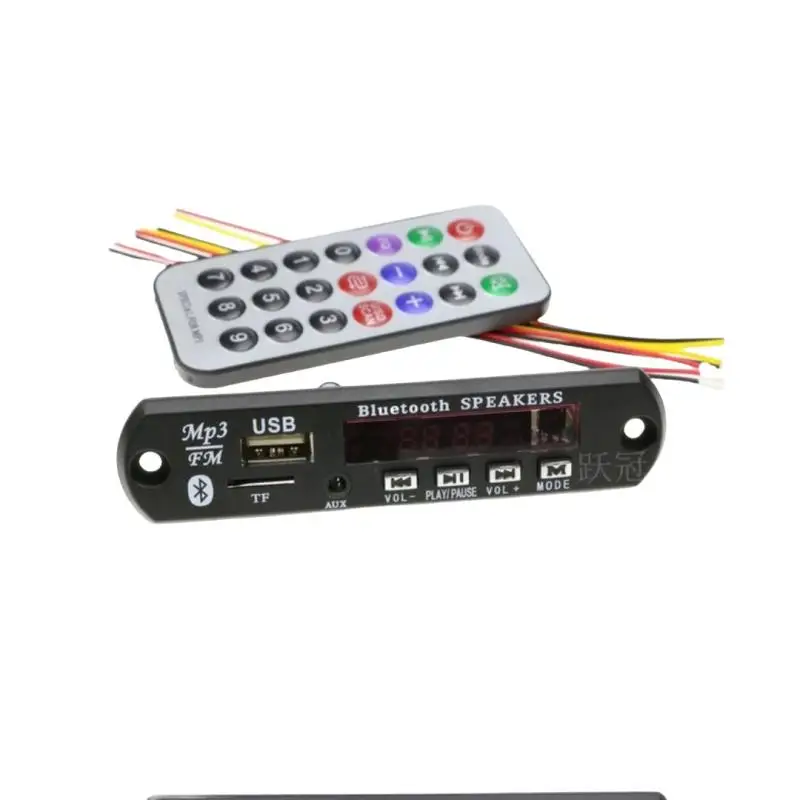

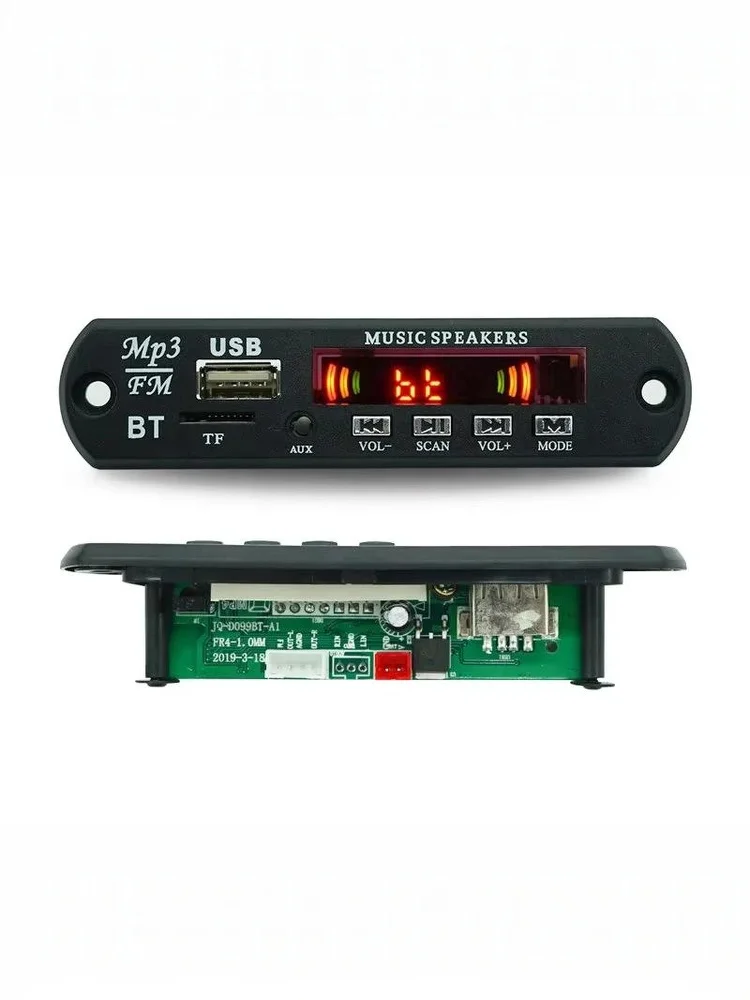

Description

1. Double decoding MP3, WMA, WAV format music

2. Supports Bluetooth function

3. Equipped with digital display

4. Supports MMC/SD/MMA and cards, supports USB interface (USB flash drive)

5. Power off memory function 24C02

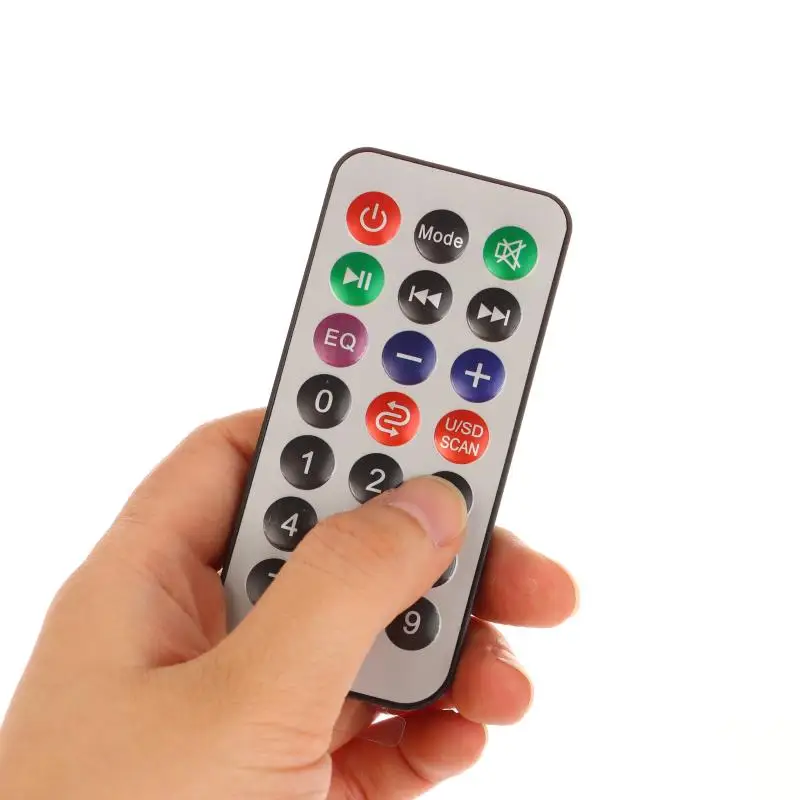

6. Support infrared remote control operation at a distance of 5-10 meters

7. Support external audio input LINE IN (AUX)

8. Support FM radio reception and frequency range (87.5MHZ-108.0MHz)

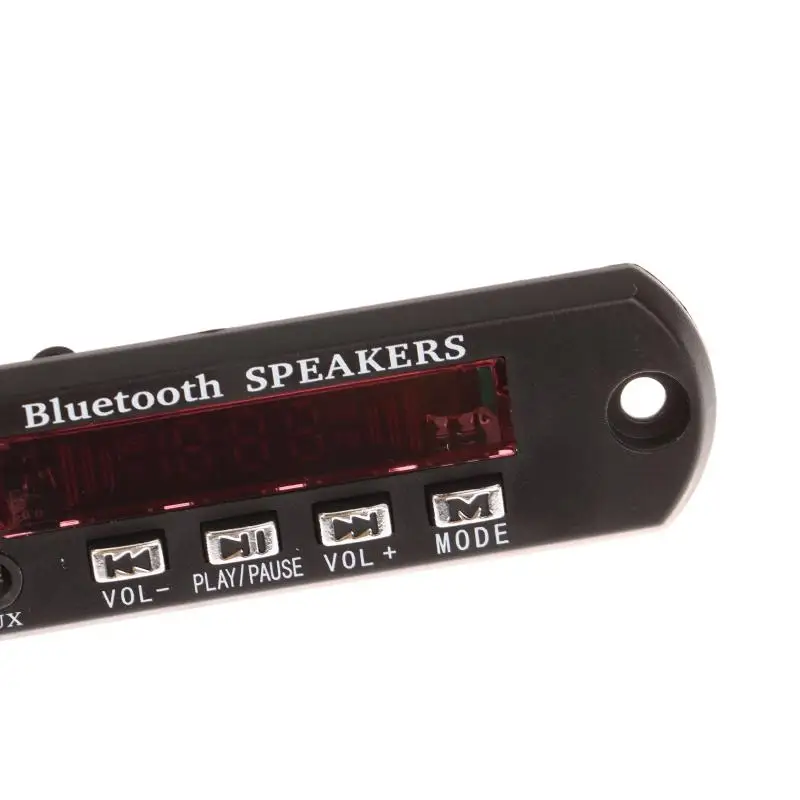

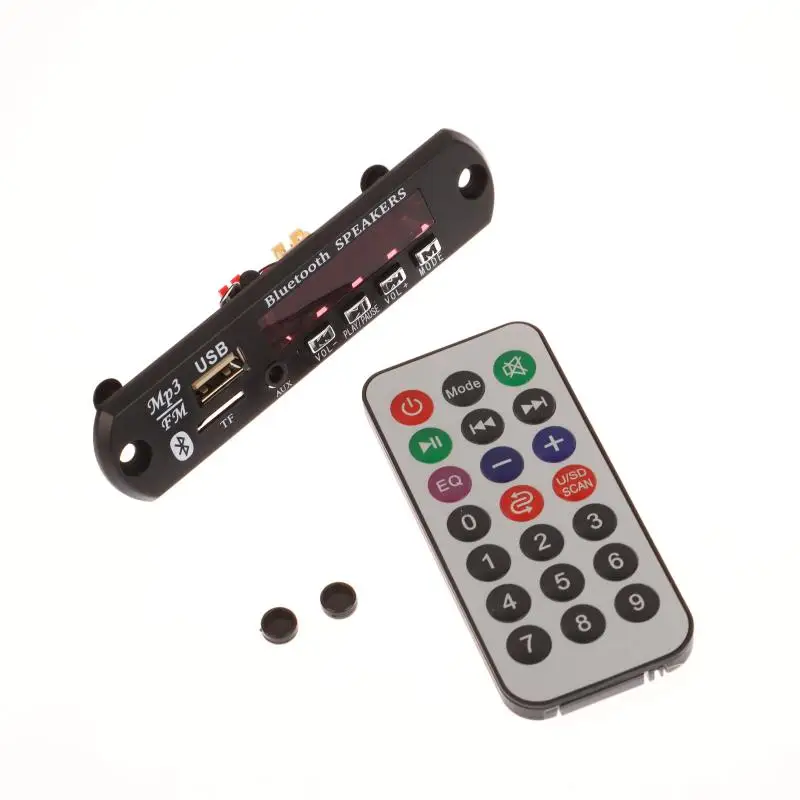

9. Button: Four button multi-directional operation, VOL -/AUTO/VOL+/MODE

Detailed button operation:

1. VOL button (previous track/volume decrease): In MP3 mode, short press VOL button for previous track, long press button for volume decrease;Short press in FM mode to move up one station number;Short press to play the previous song on Bluetooth, long press to decrease the volume.

2. AUTO button (play/pause): Short press AUTO in MP3 mode to play/pause;Short press to play/pause in FM mode, long press to automatically receive and coexist channels;Short press to play/pause under Bluetooth function.

3. VOL+(next track/volume increase): In MP3 mode, short press VOL+to switch to the next track, long press to increase volume;Short press in FM mode to downgrade one station number;Short press to switch to Bluetooth next track, long press to increase volume.

4. MODE button: Switch between USB/SD/FM/AUX/Bluetooth functions once.

Product Introduction

Supports Bluetooth function/dual decoding MP3, WMA, WAV format music/read USB drive/read SD card/radio FM/external audio input LINE IN (AUX)/infrared remote control/power-off memory/power supply 5V or 12V.

This link is for TF small SD card socket products

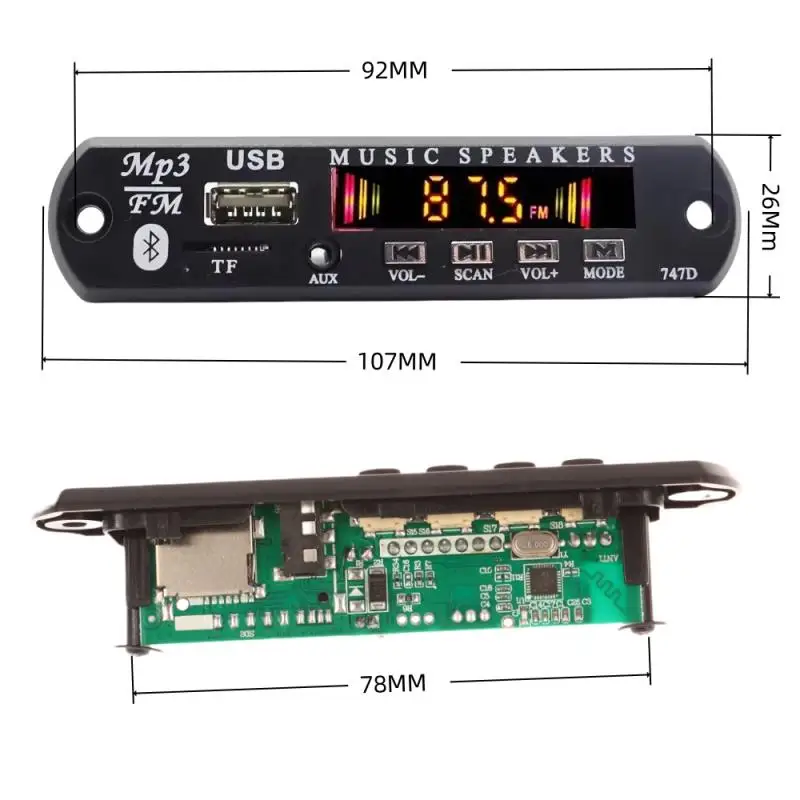

Shell size: 108 * 25.6mm, 92 * 25.6mm

Communication interface: RCA

Material: Plastic

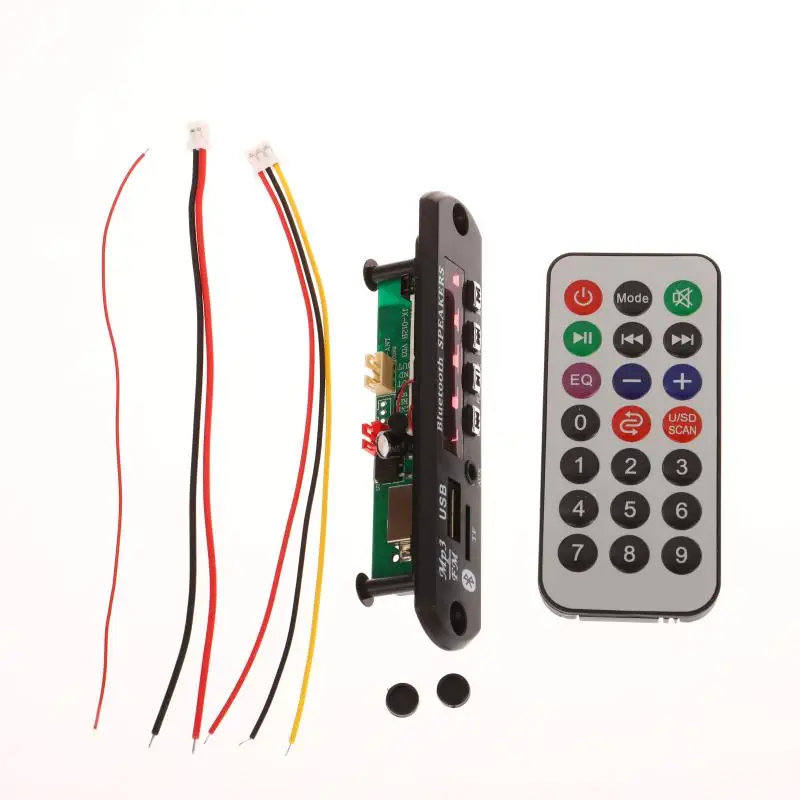

Package Contents:

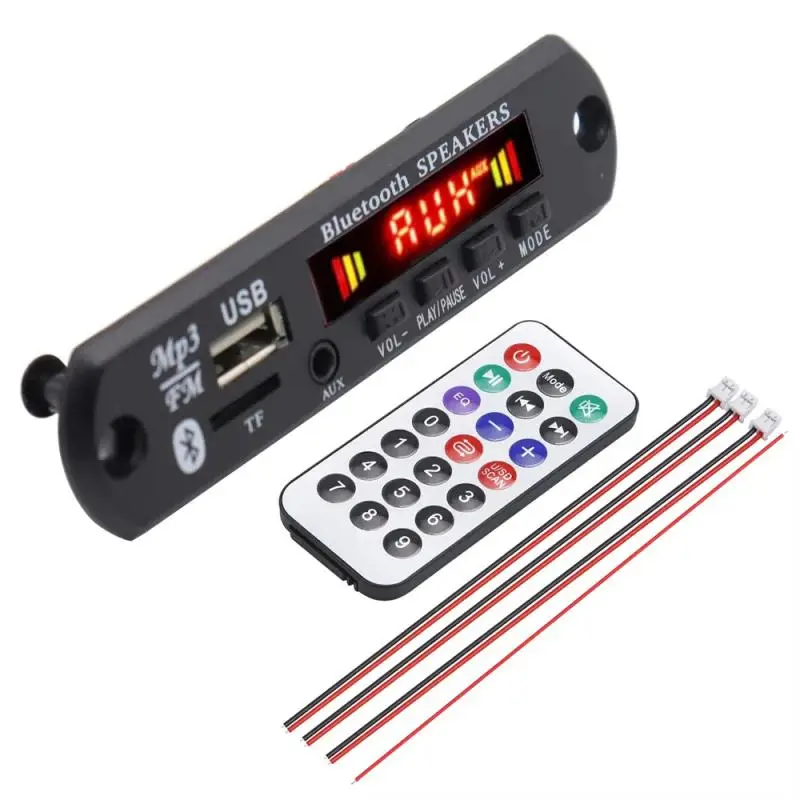

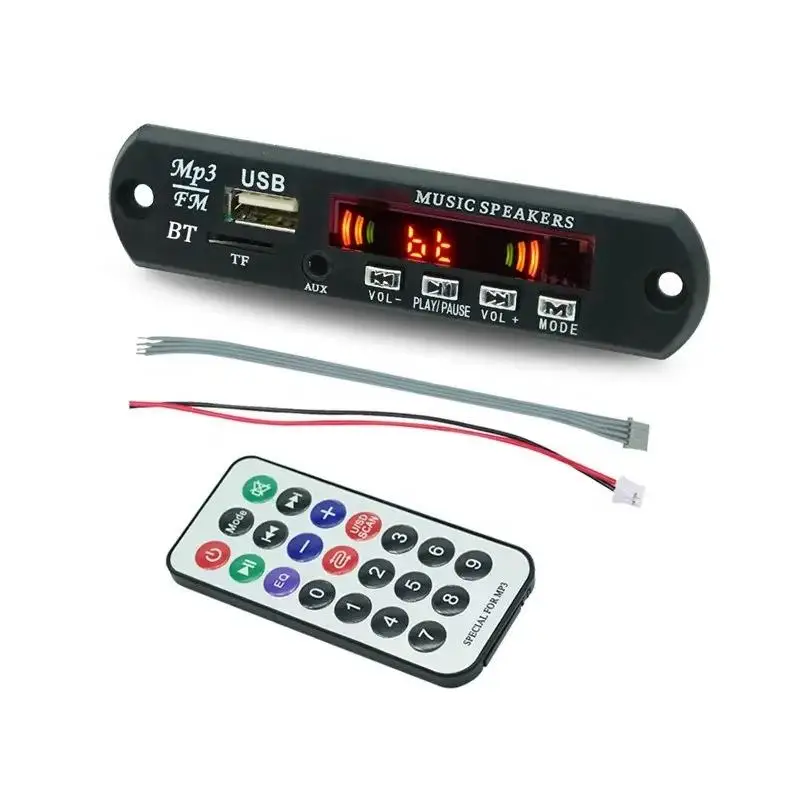

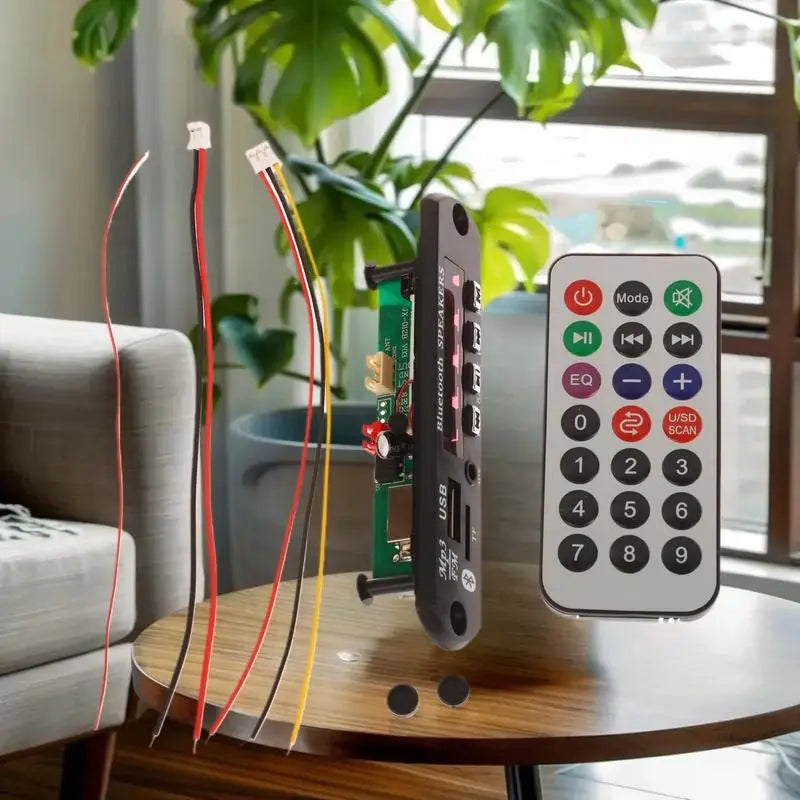

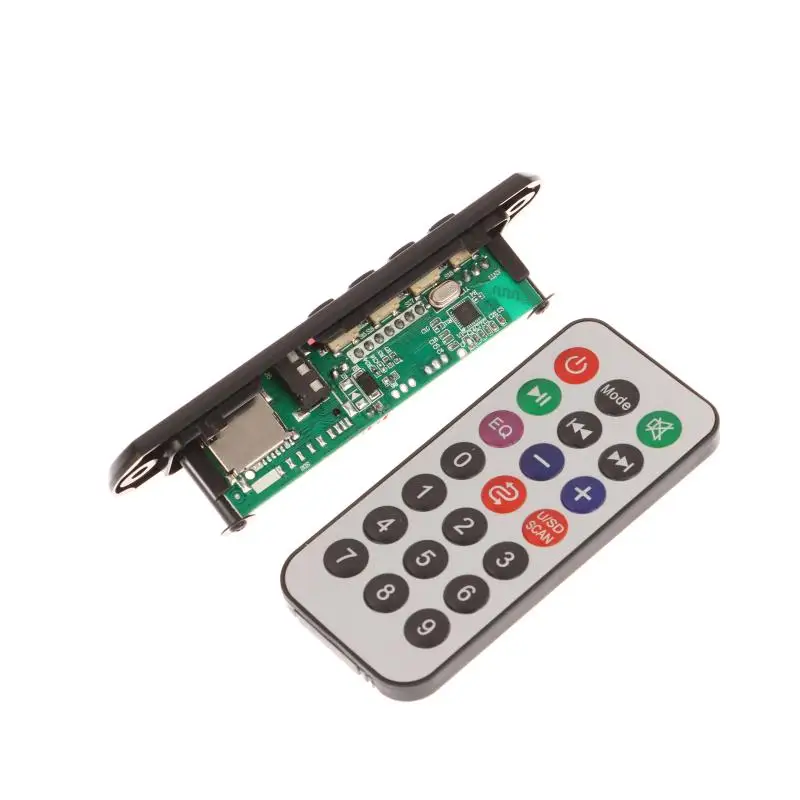

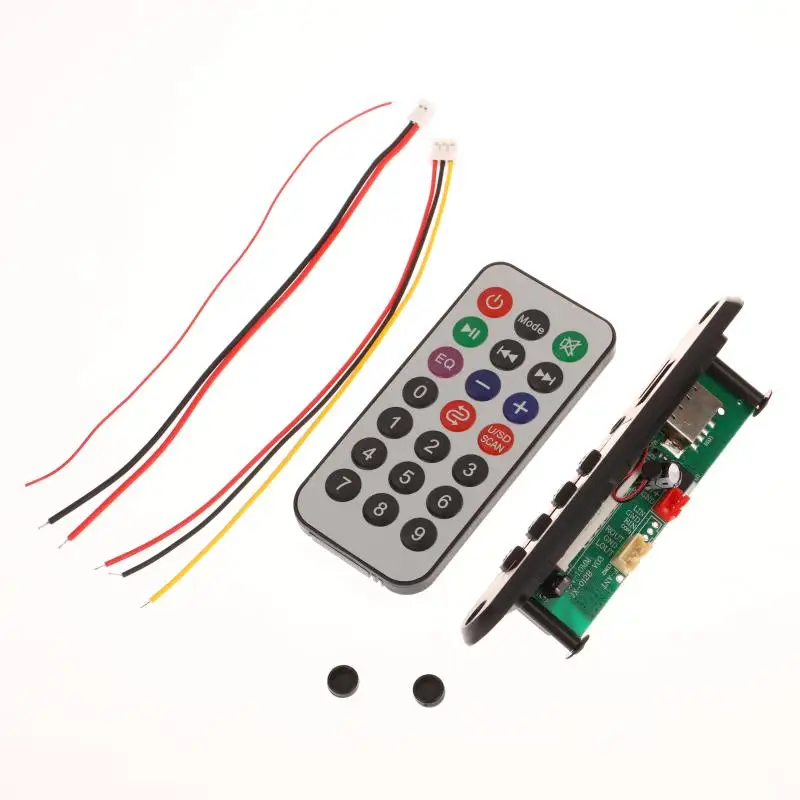

1 set x decoder(remote control does not include battery)



Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
