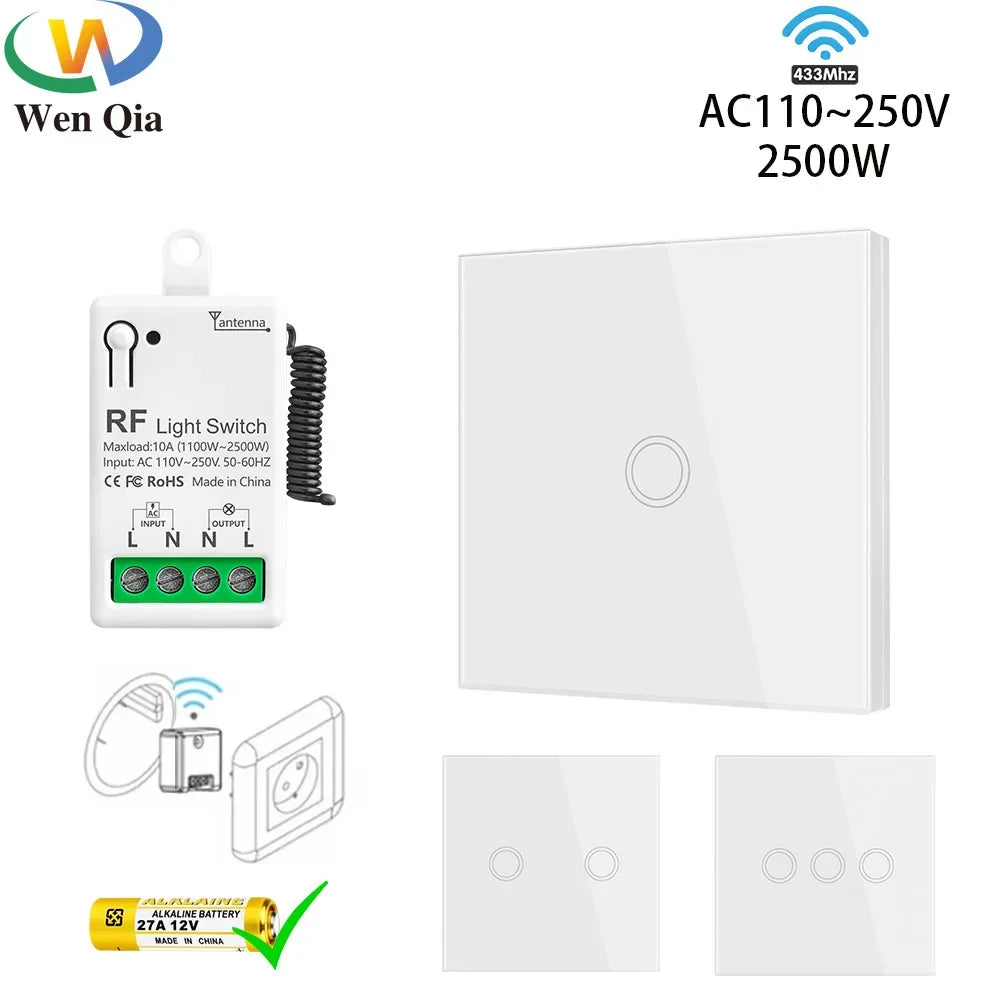

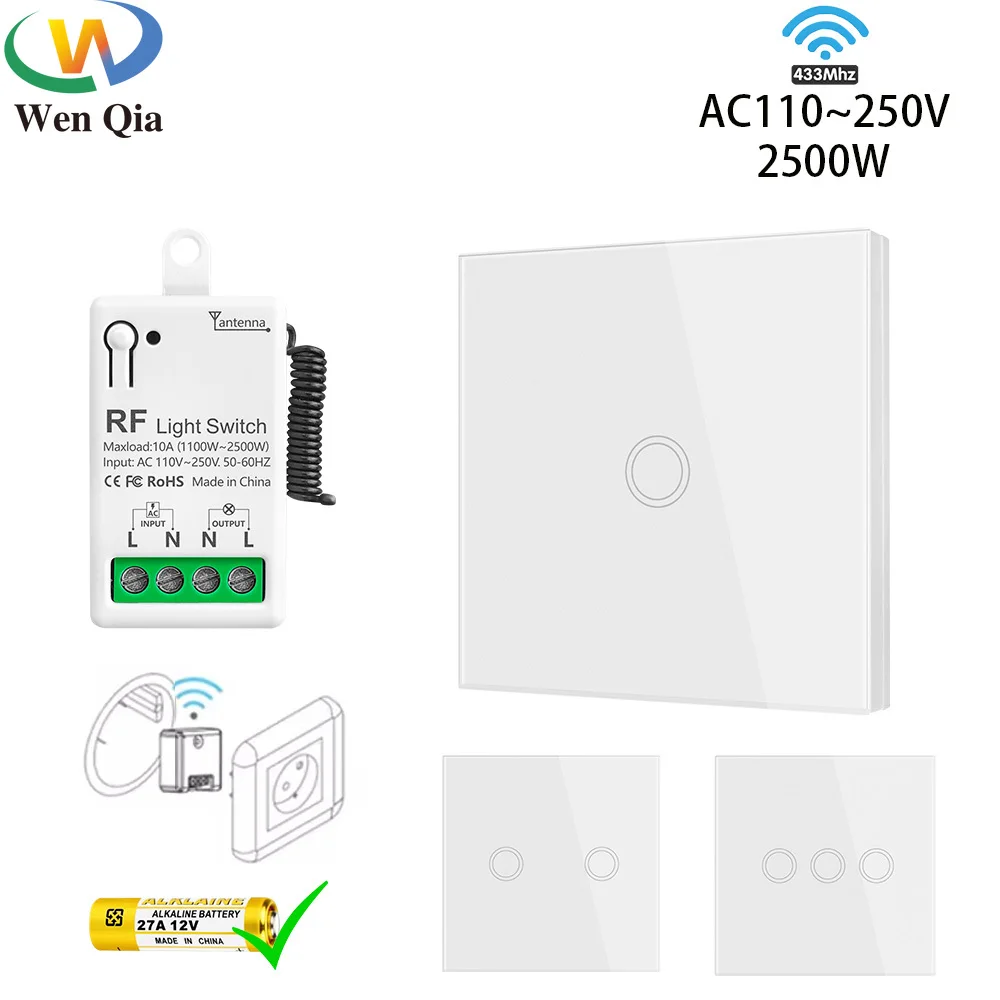

Smart Wireless Light Switch 433Mhz Wall Panel transmitter touch remote control Switch 110V 220V 10A Mini Relay Receiver for Lamp
Smart Wireless Light Switch 433Mhz Wall Panel transmitter touch remote control Switch 110V 220V 10A Mini Relay Receiver for Lamp
Couldn't load pickup availability
SPECIFICATIONS
Application 1: Led Light Lamp Switch, Home Security Alarm System Home Appliances
Application 2: water Heater, Fan, Fish tank, Diy Home electrical equipment
Brand Name: WenQia
Certification: RoHS,FCC,CE,CCC,ce,ROHS
Choice: yes
Current: 10A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: smart lighting switches / electrical light switches /Wall switch
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic,plastic
Max Current: 10Amp
Mini relay receiver: 28*47*4MM
Model Number: WP921 Mini relay receiver
Modulation Mod: ASK
Origin: Mainland China
Receiving Sensitivity: 97dbm
Shell: Yes
Switch Type: Push Button Switch
Switch size: 86*86
Warranty: 1 YEAR
Working Voltage: AC 85V~245V
Working temperature: -30 ~ +80
remote distance: Up to 100m (theoretical distance)
semi_Choice: yes
switch type: Touch button switch
use for: Hmoe, Farm, Factory, Office, Supermarkets and so on

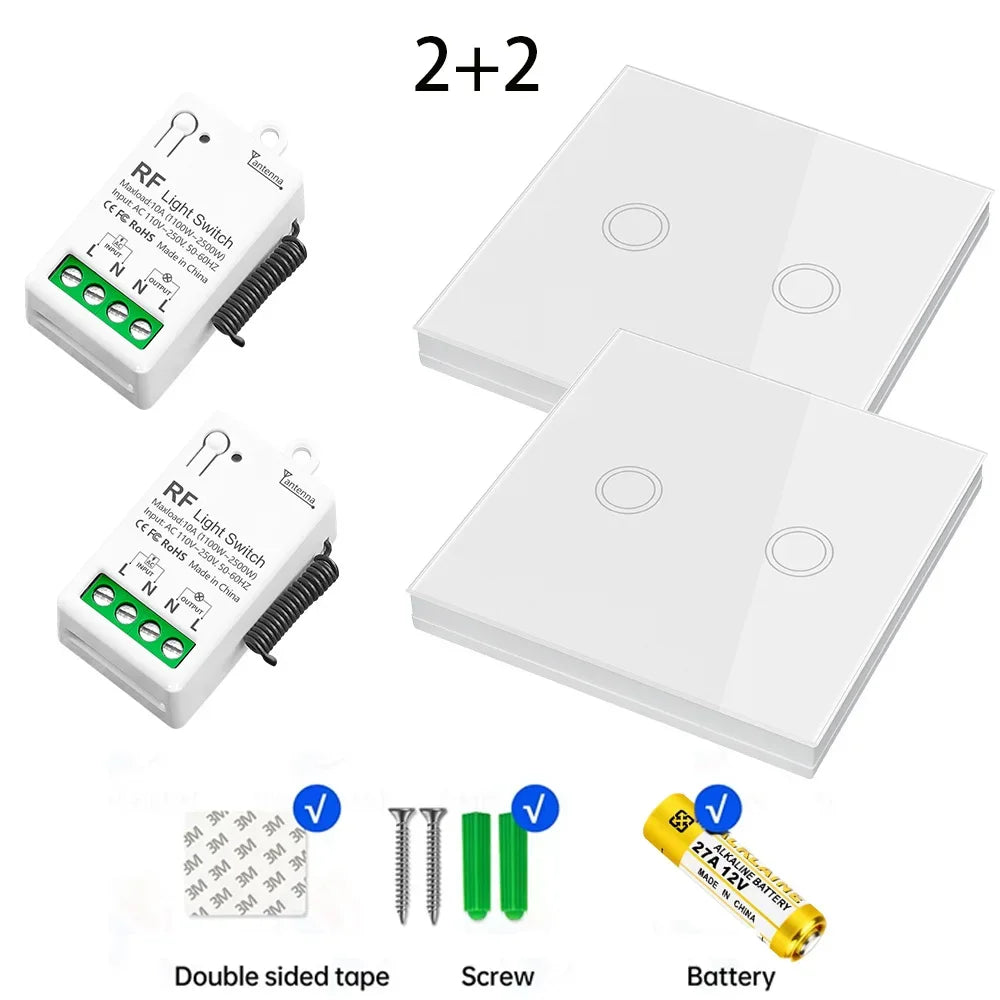

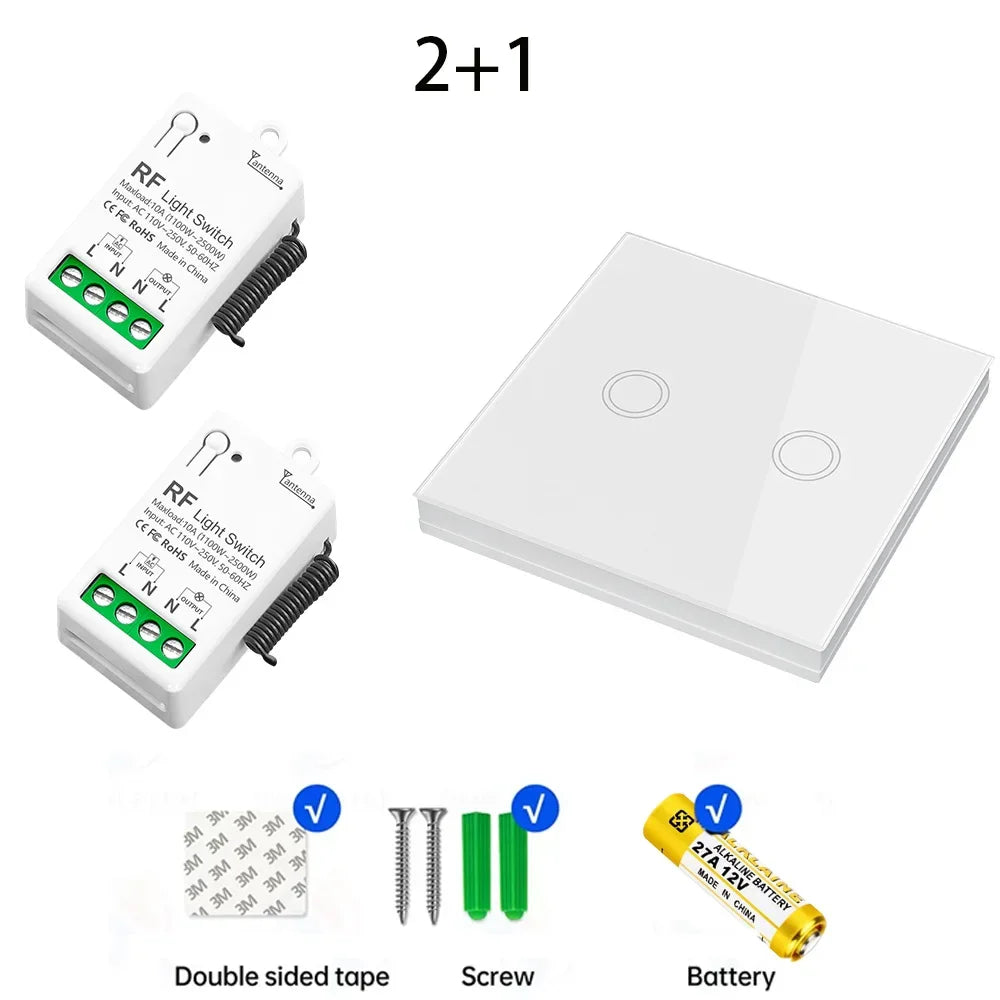

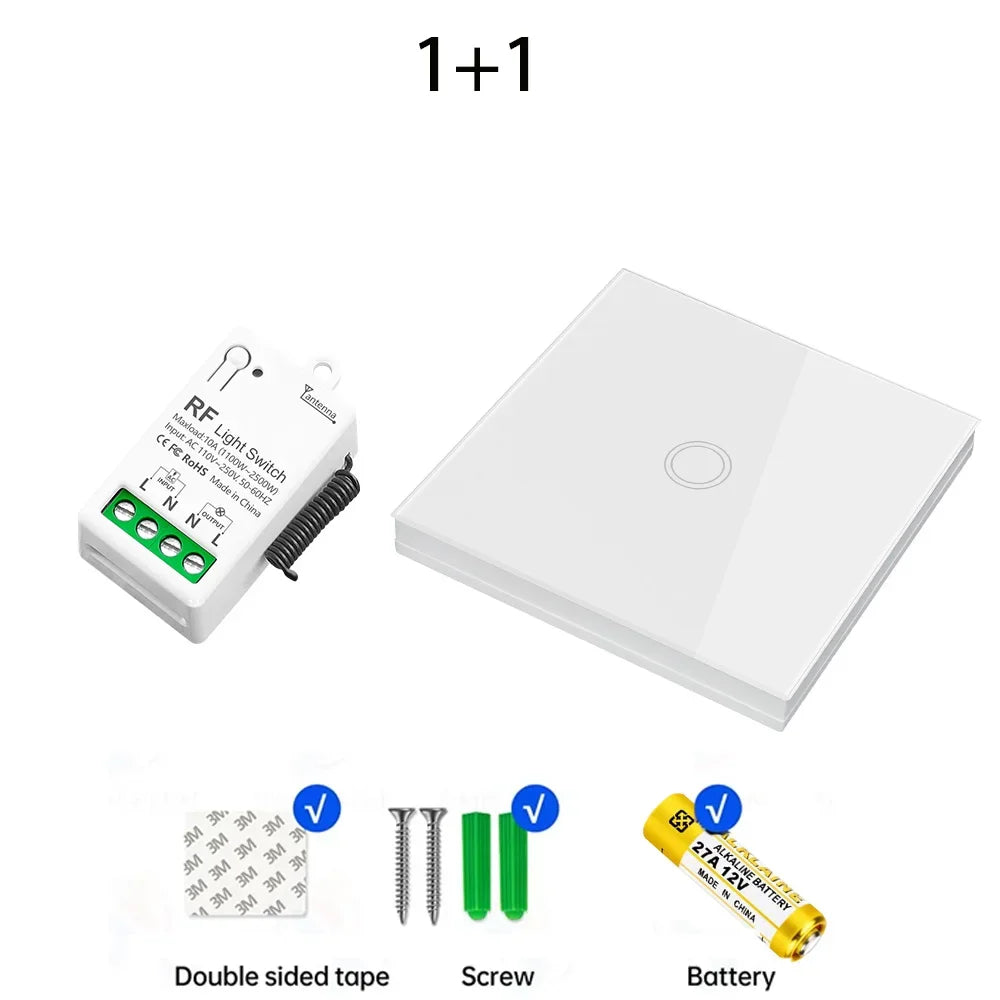

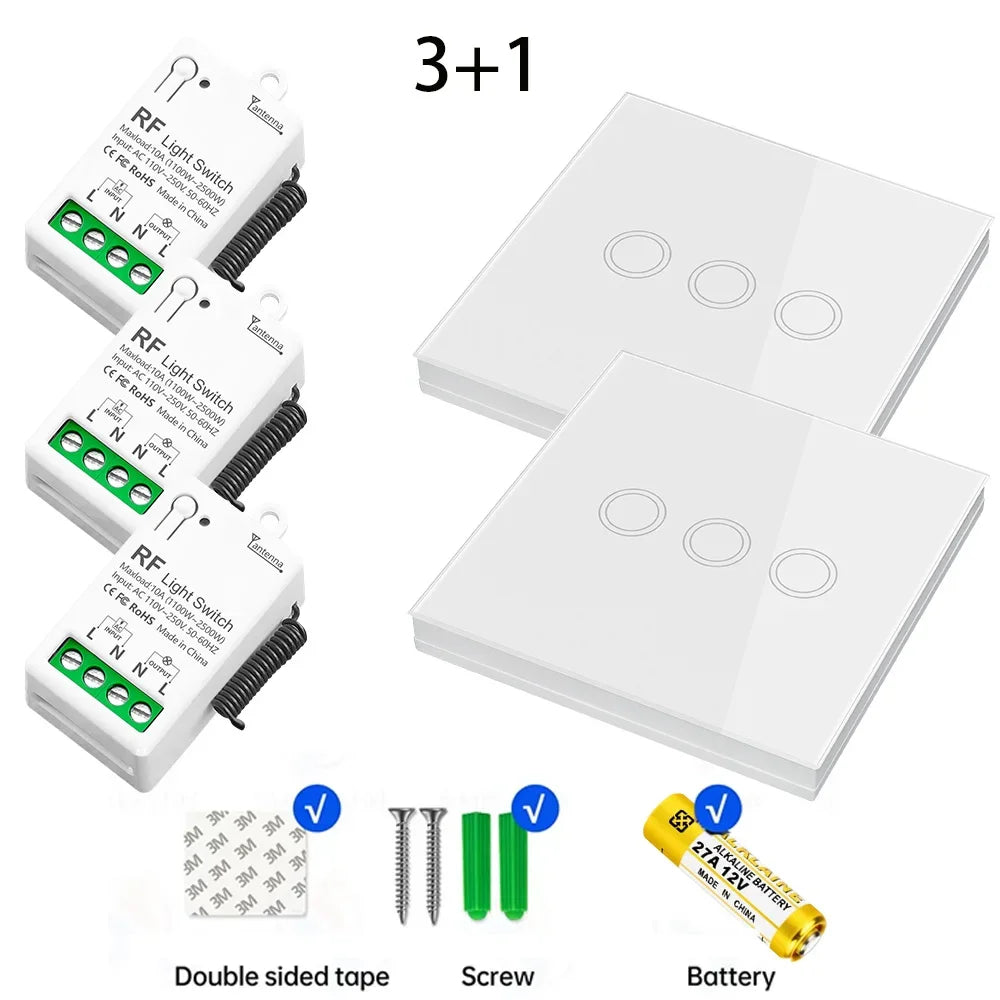

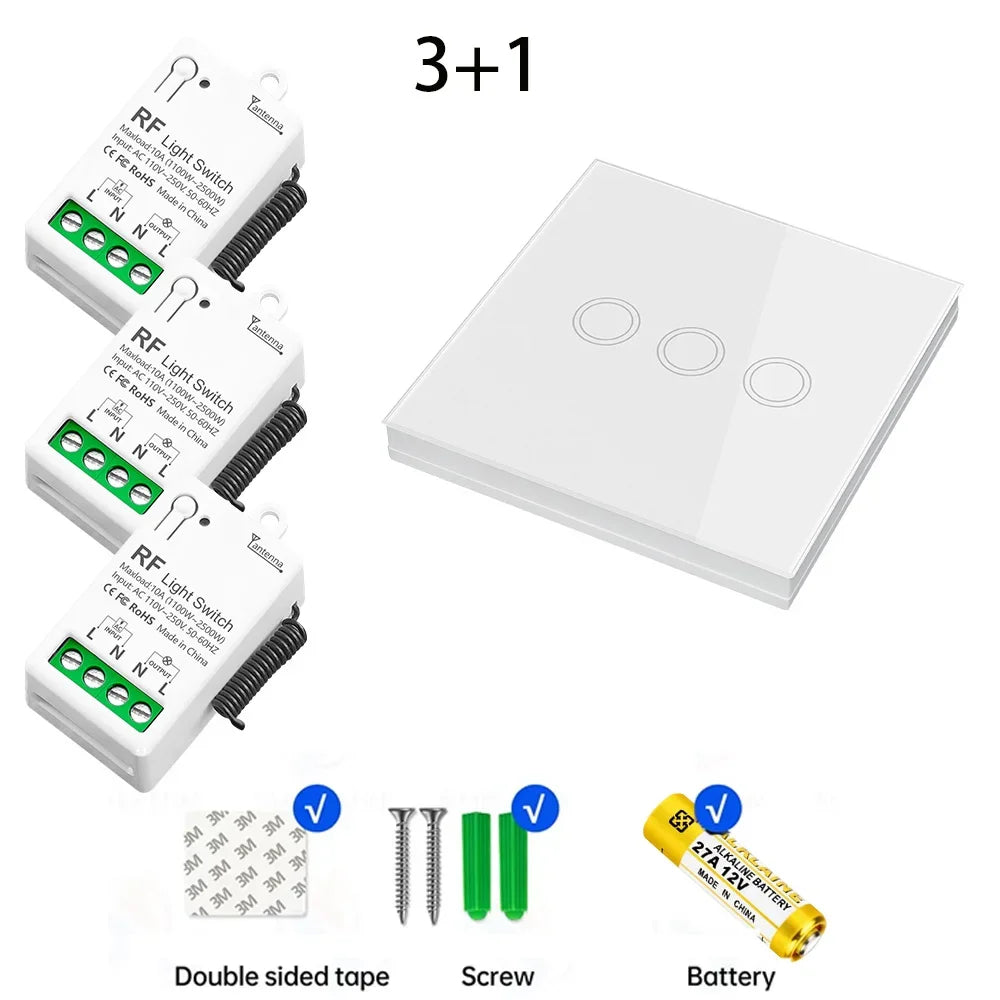

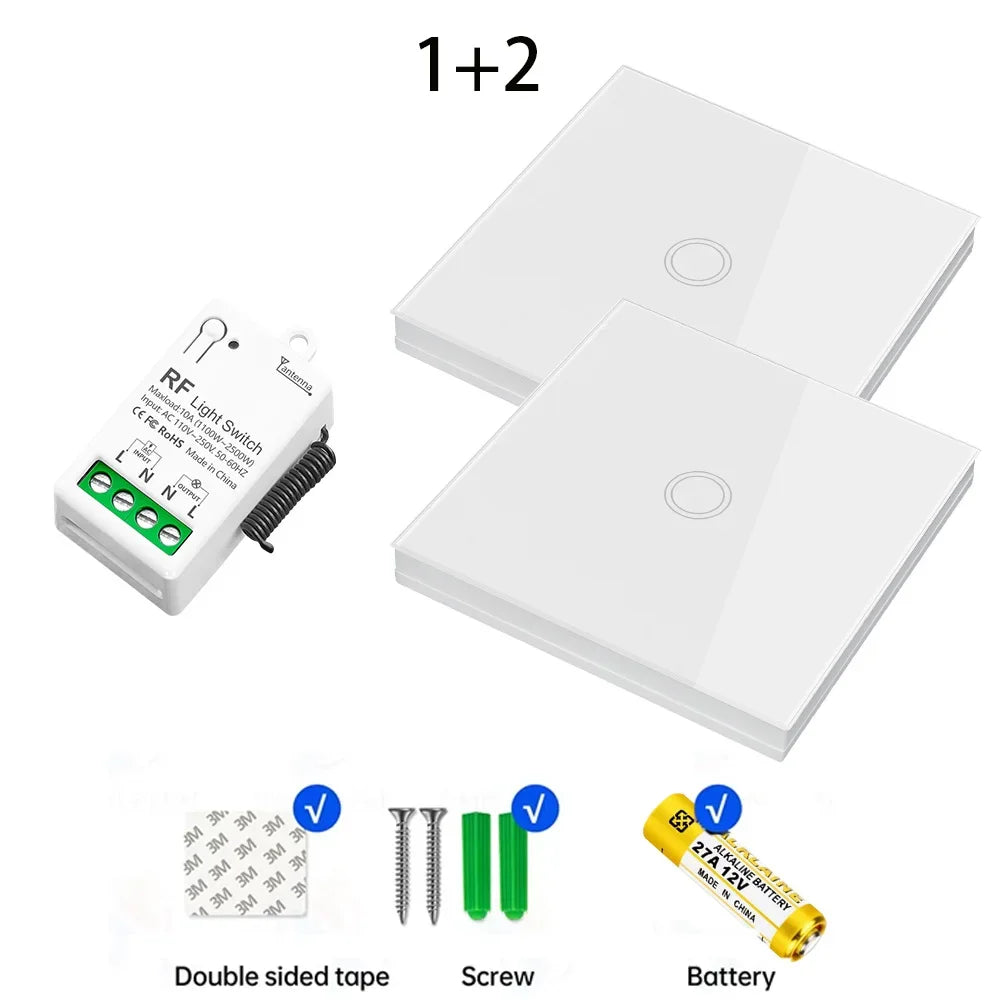

There are various combinations in the options, which are convenient to use, please purchase according to actual needs.
Simple to use

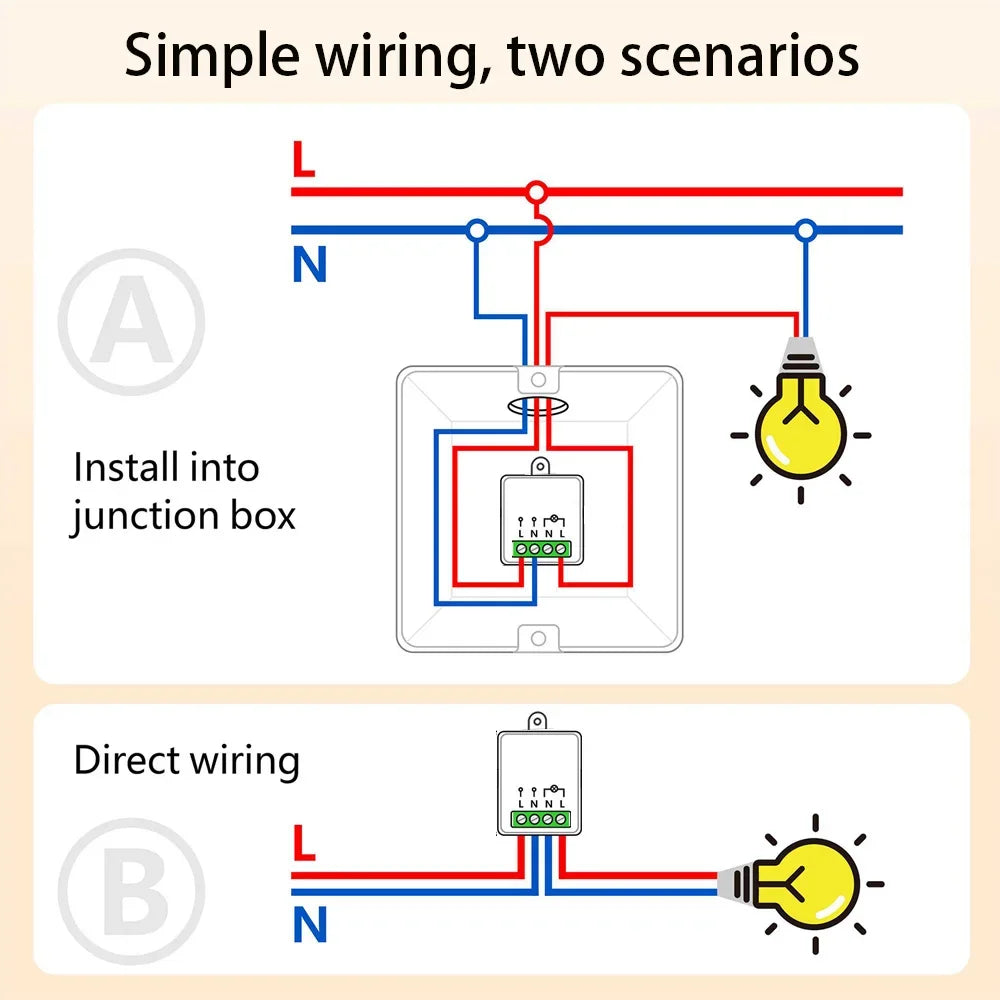

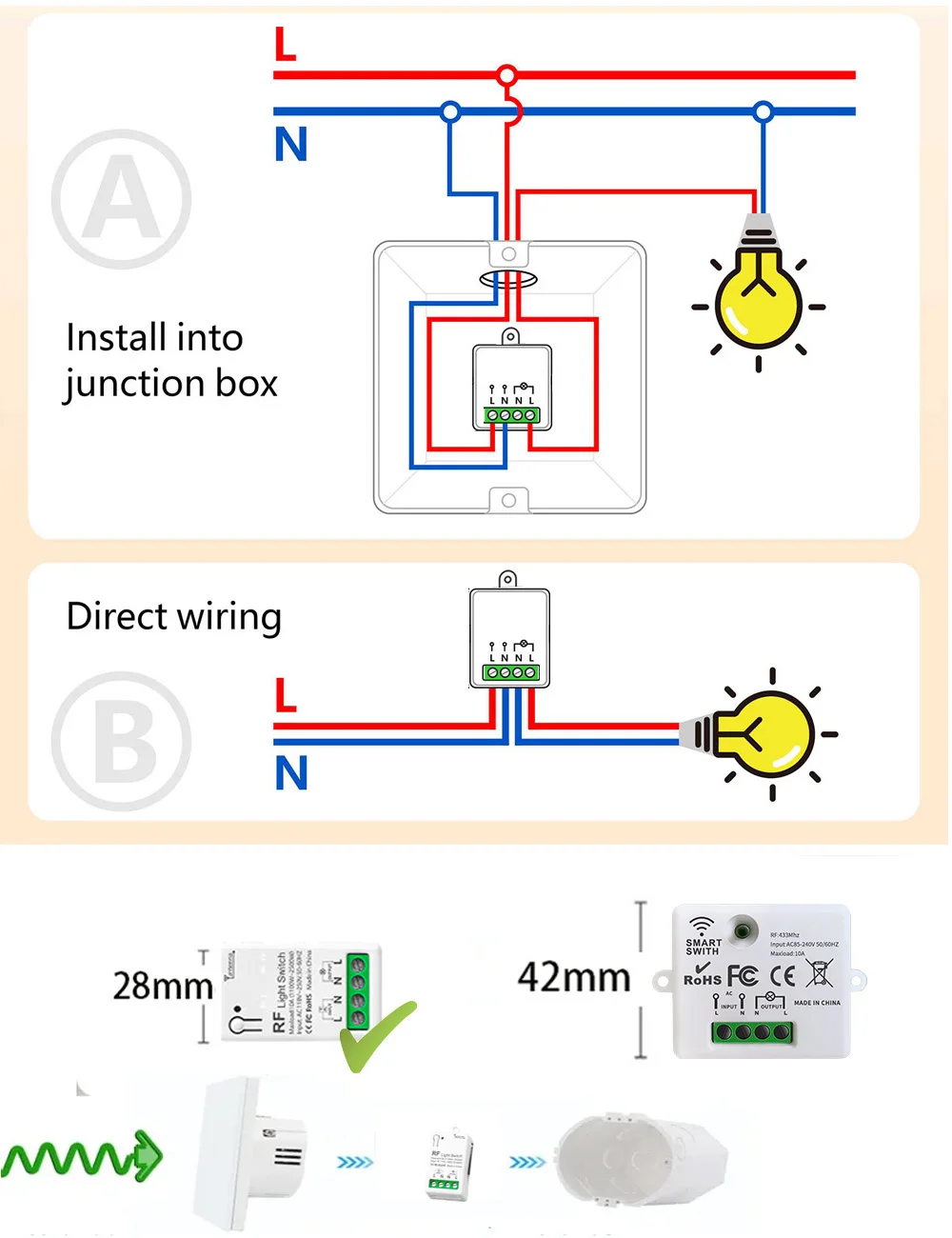

two simple wirings(Installed in the home wall panel switch cassette or directly connect to the light.)

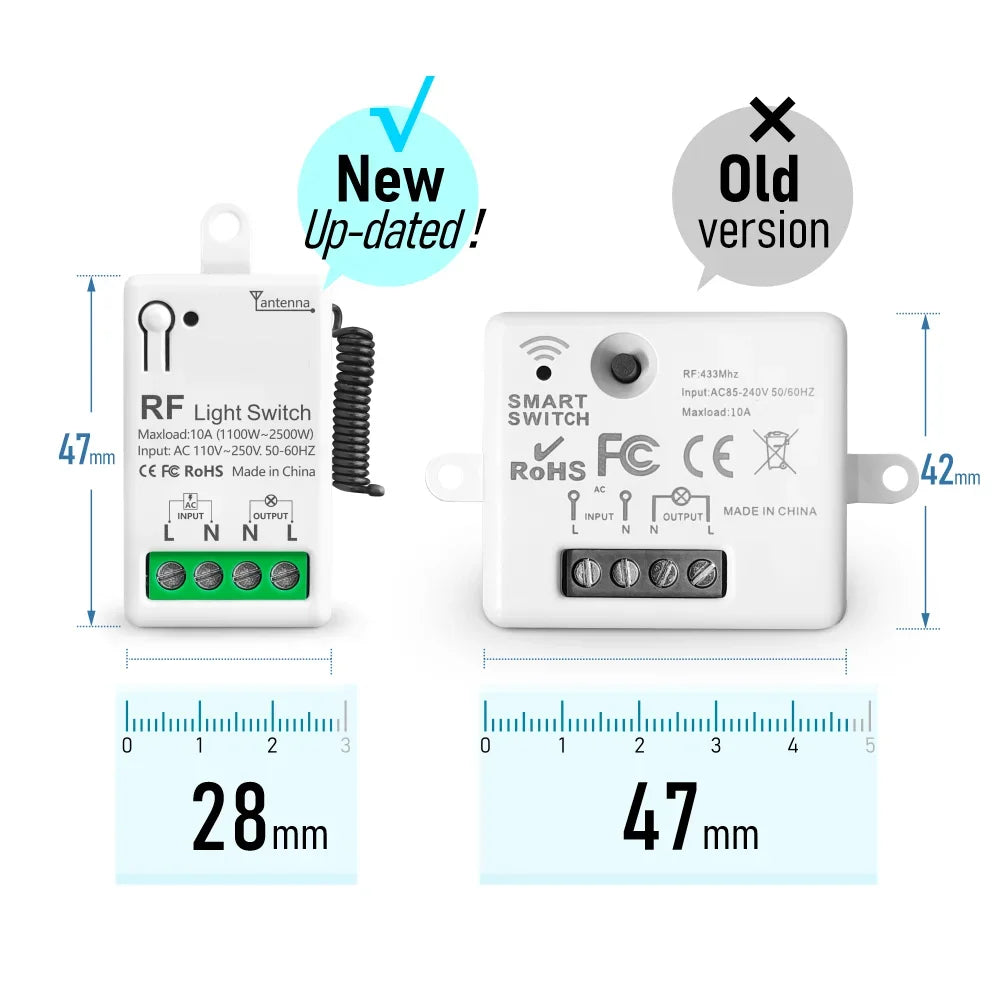

Perfect vary small size(28*47*4MM),Suitable for installation in various environments.
1:Perfect small size ( Note: Package included Screw anddouble-sided tape.)
Four different installation scenarios:
--Use double-sided tape to directly install and fix the receiver on the surface of the object;
--Use screws to fix the receiver on the surface of the object;
--Put the receiver install behind a power outlet;
--Install behind the suspended ceiling.
2:The wireless remote control switch is equipped with battery(27A12V),and the battery power can use last for two years.

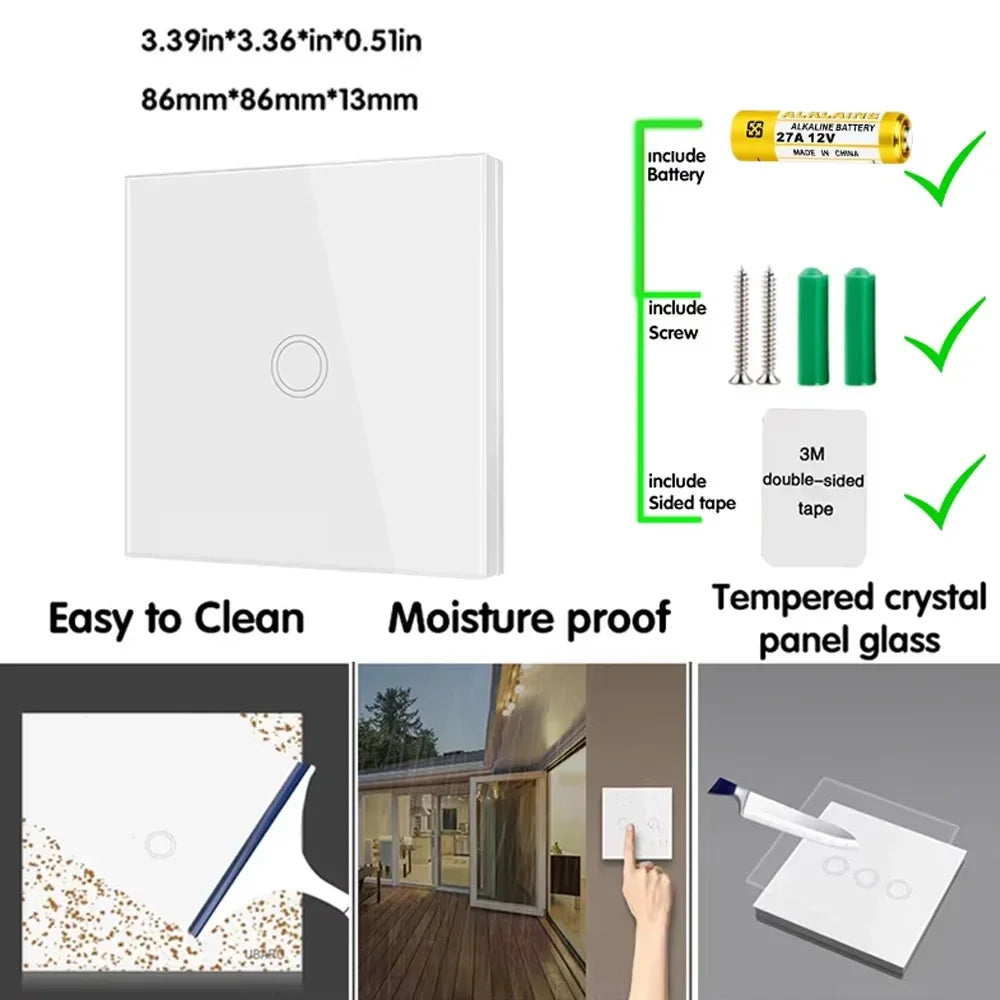

3:The surface of the wireless remote control switch is tempered glass, touch switch, and waterproof.
4:Flexible DIY control method

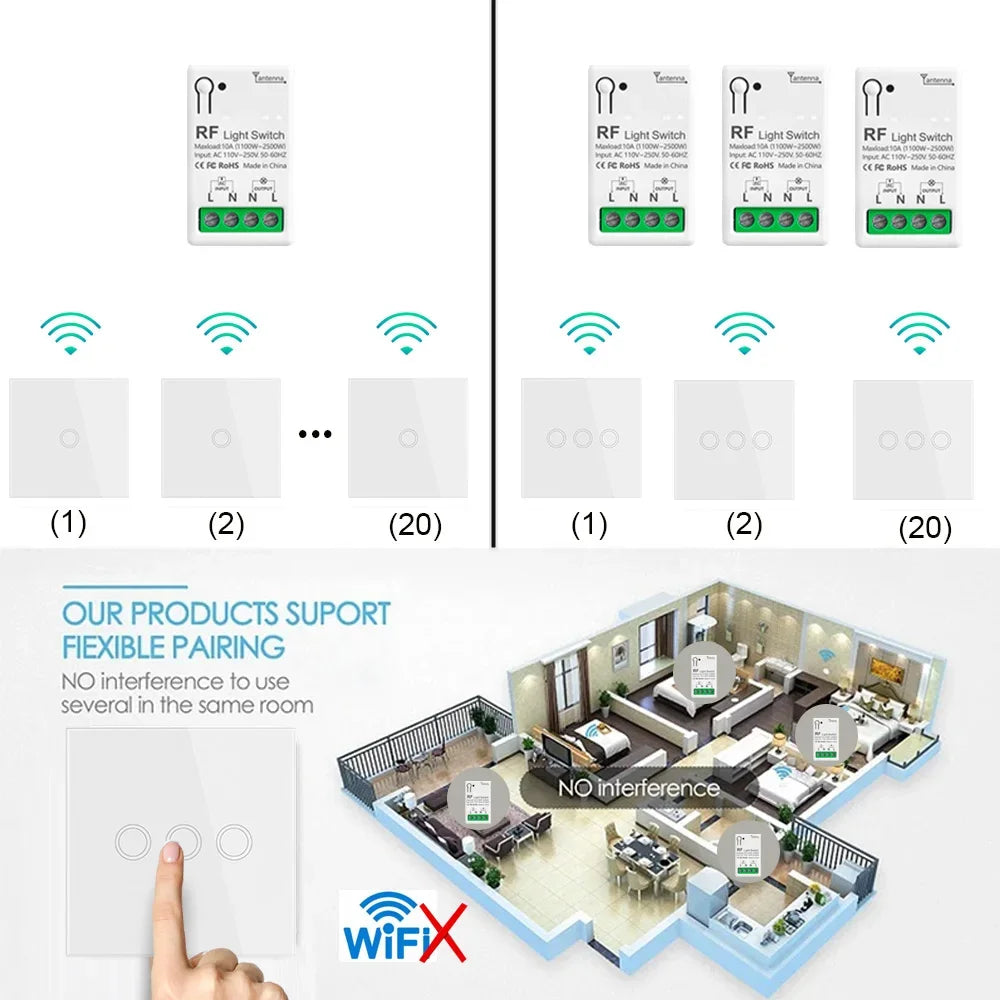

--Multi switches Control One/Multi Lights Receiver in the meanwhile
--20 wireless remote control switches can control one wireless receiver at the same time. Each wireless remote control has an independent chip. In the same room,Multiple sets of wireless remote controller can be used without affecting each other.
5:Multiple control modes to Save electricity
--At any time, you can either use the front panel or remote control.
--Set the remote control at different locations to quickly turn on or off the lights.
--Turn the lights on in advance to avoid darkness,
--Turn off the lights after leaving, save energy
About control signals:

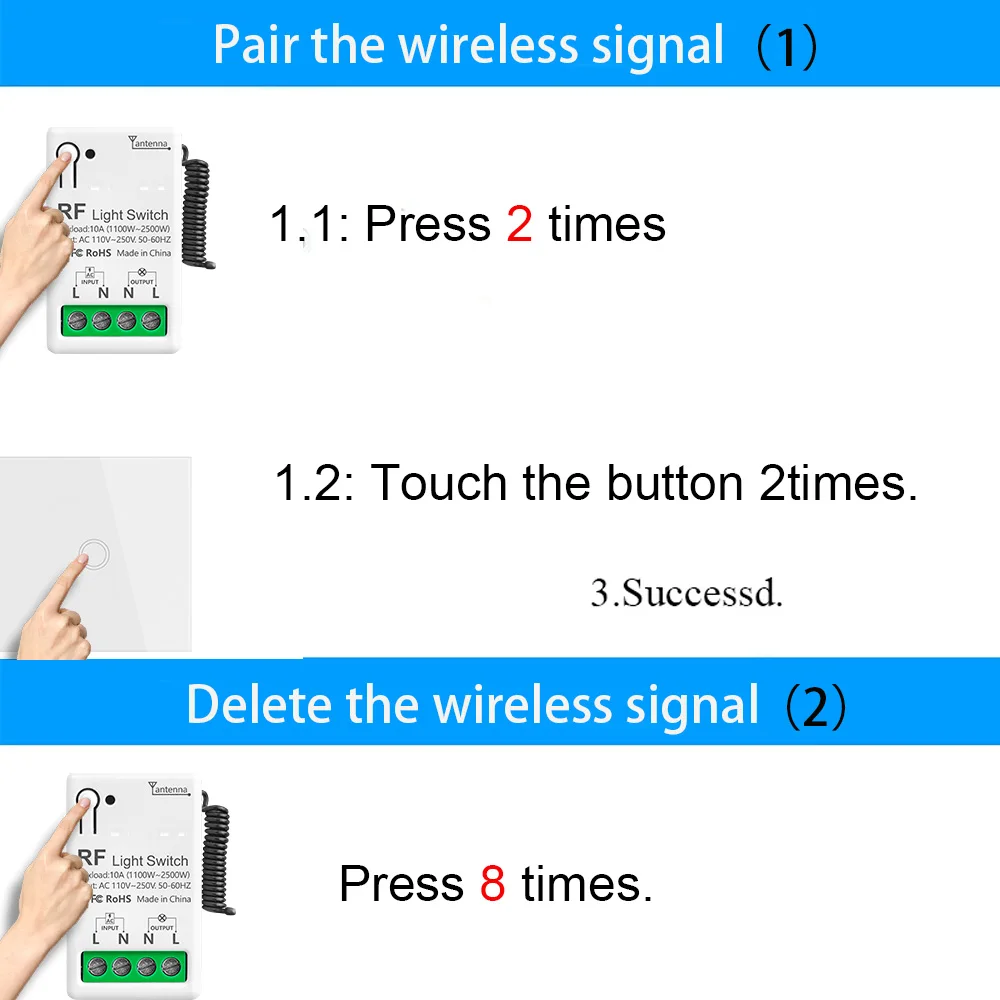

1:How to pair the wireless signal:
Step 1.1: Press the learning button(on the Receiver) 2 times. Wait for 2 seconds;
Step 1.2: Touch the button on the wireless the remote control switch 2 times. Succeed.
2:How to delete the signal
Only one step :Press the learning button(on the Receiver) 8 times. Succeed.

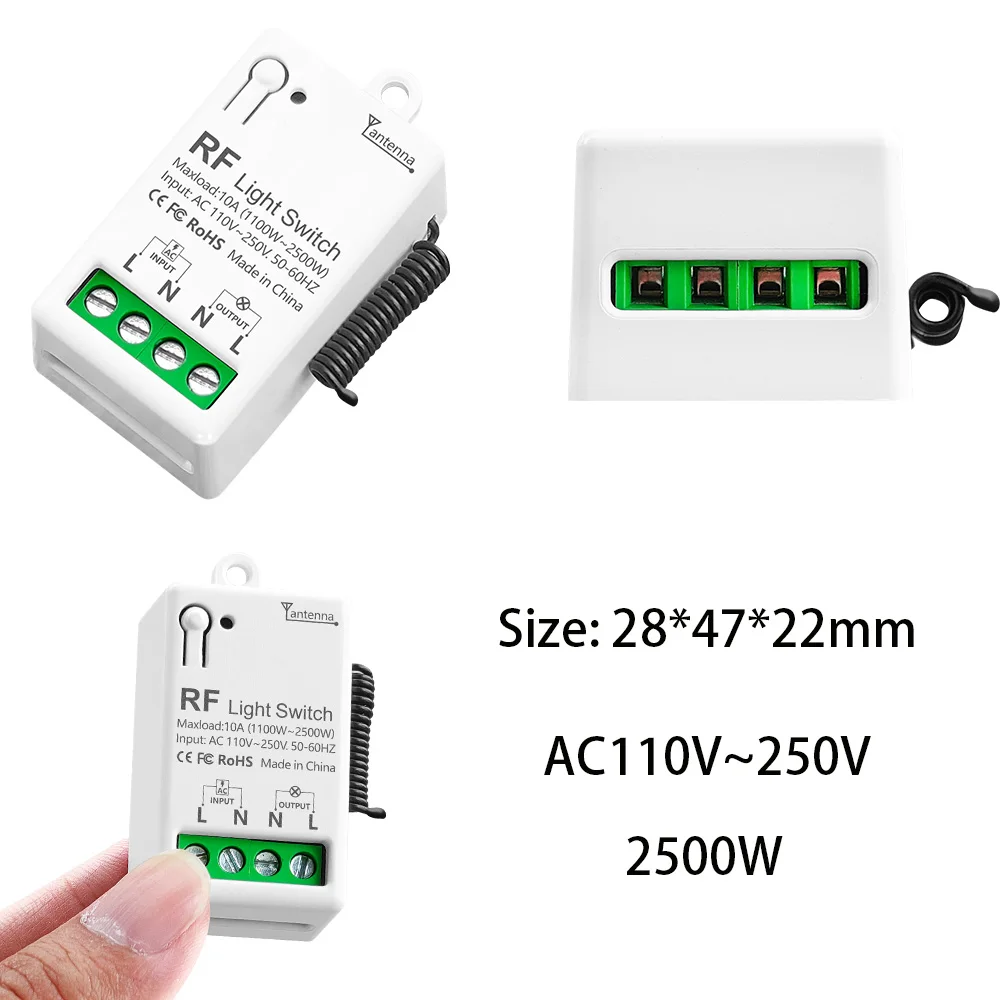

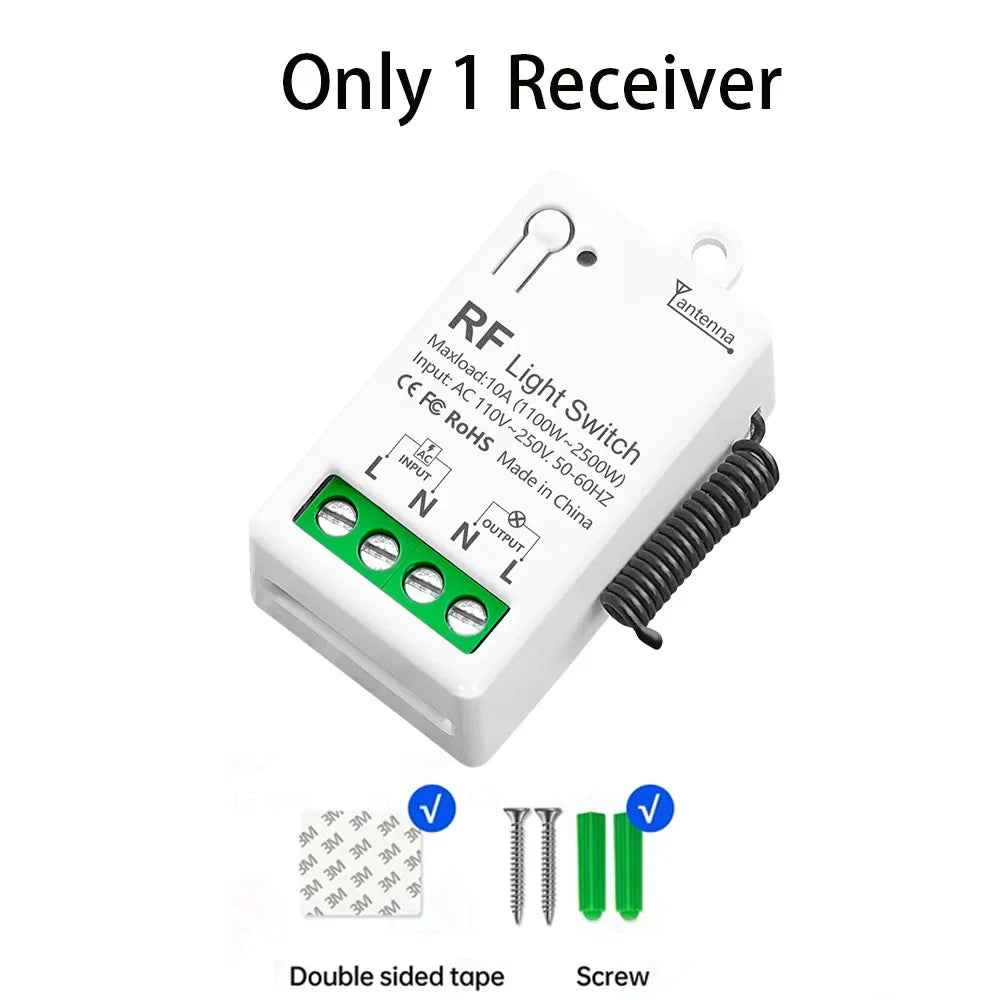

Relay Receiver Board Parameter
Max current: 10 Amp
Size:28*47*22mm
--Screw: Include
--double-sided tape: Include

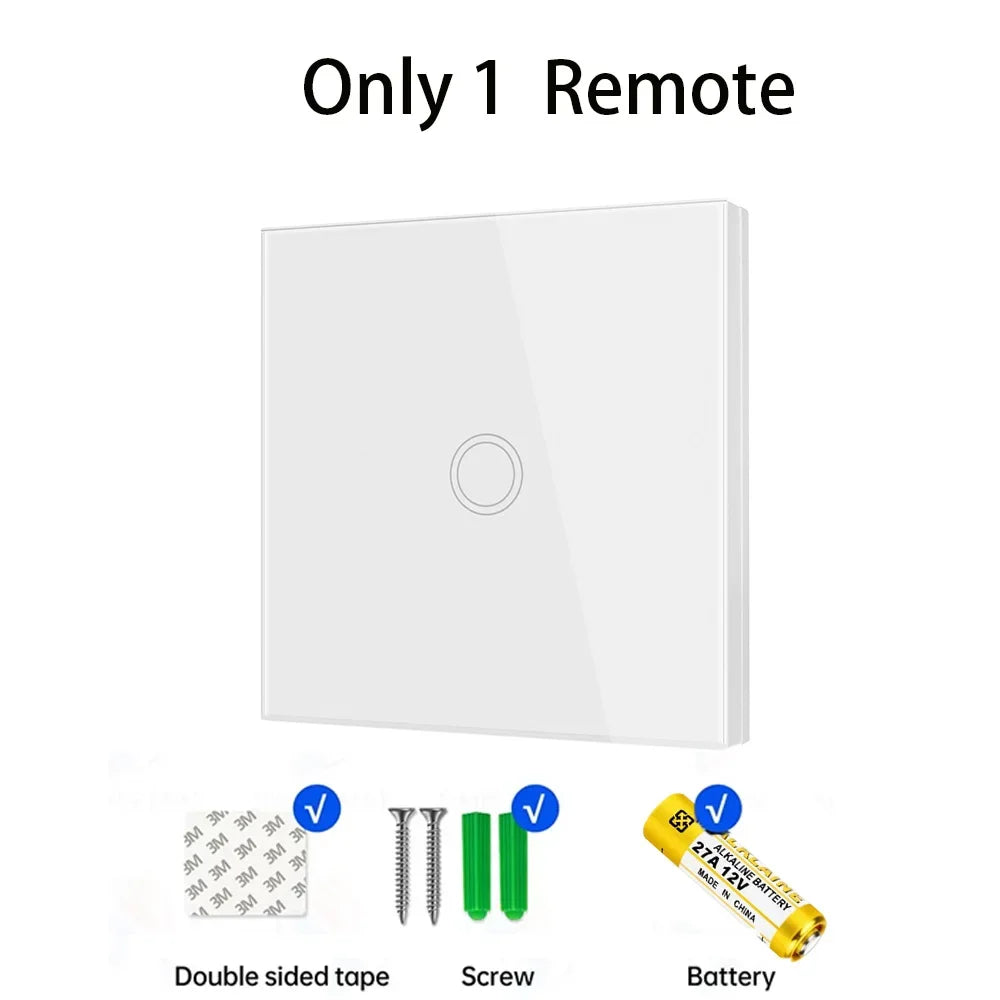

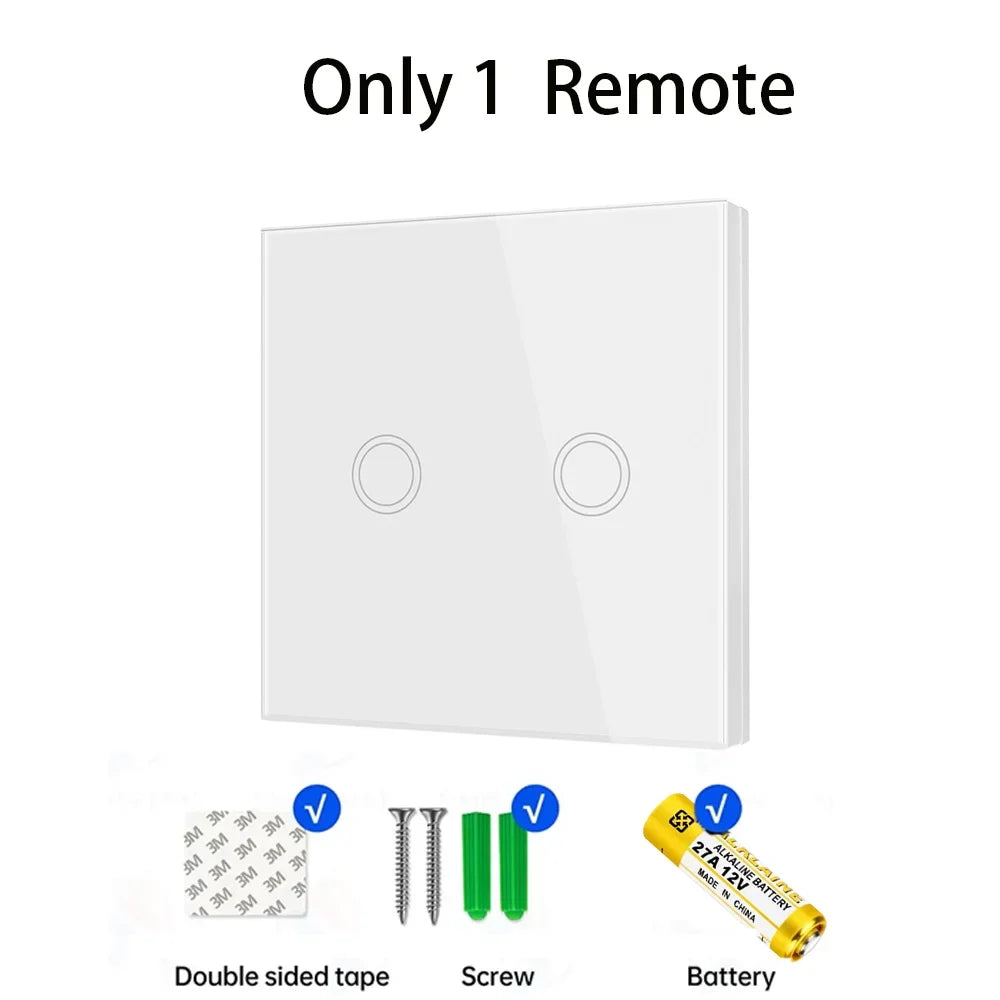

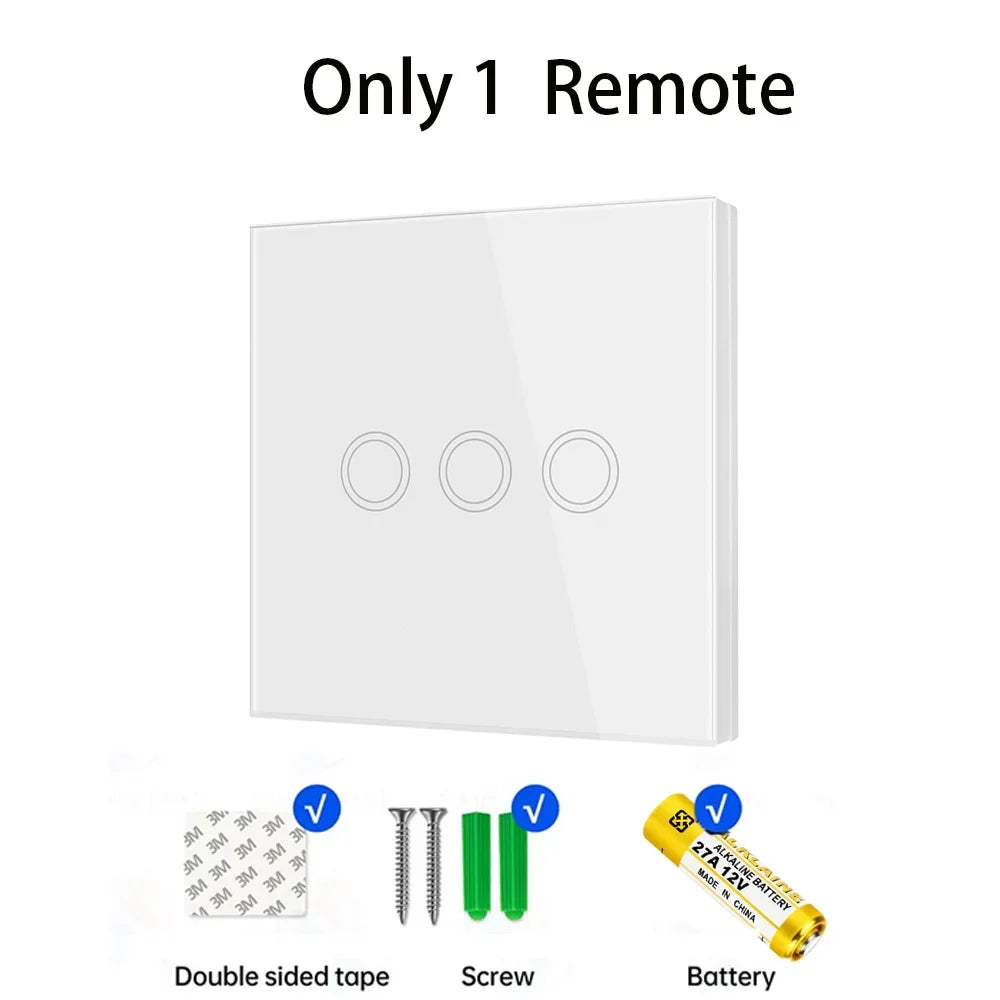

Wall panel Transmitter Parameter
--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : 27A12V( include Battery include )
--Screw: Include
--double-sided tape: Include

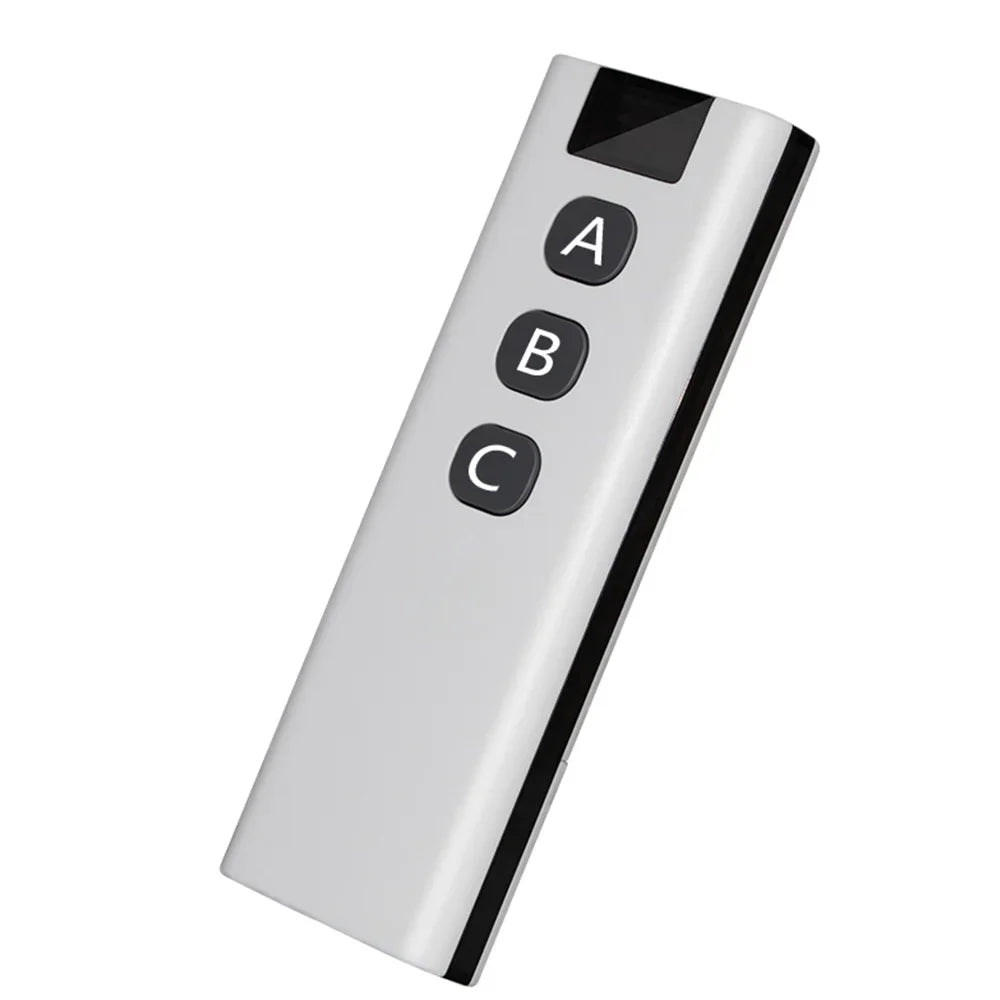

Remote controller Transmitter Parameter
--RF frequency : 433MHz--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : 23A 12V( NO Battery include )
--Screw: Include
--double-sided tape: Include
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
